Description

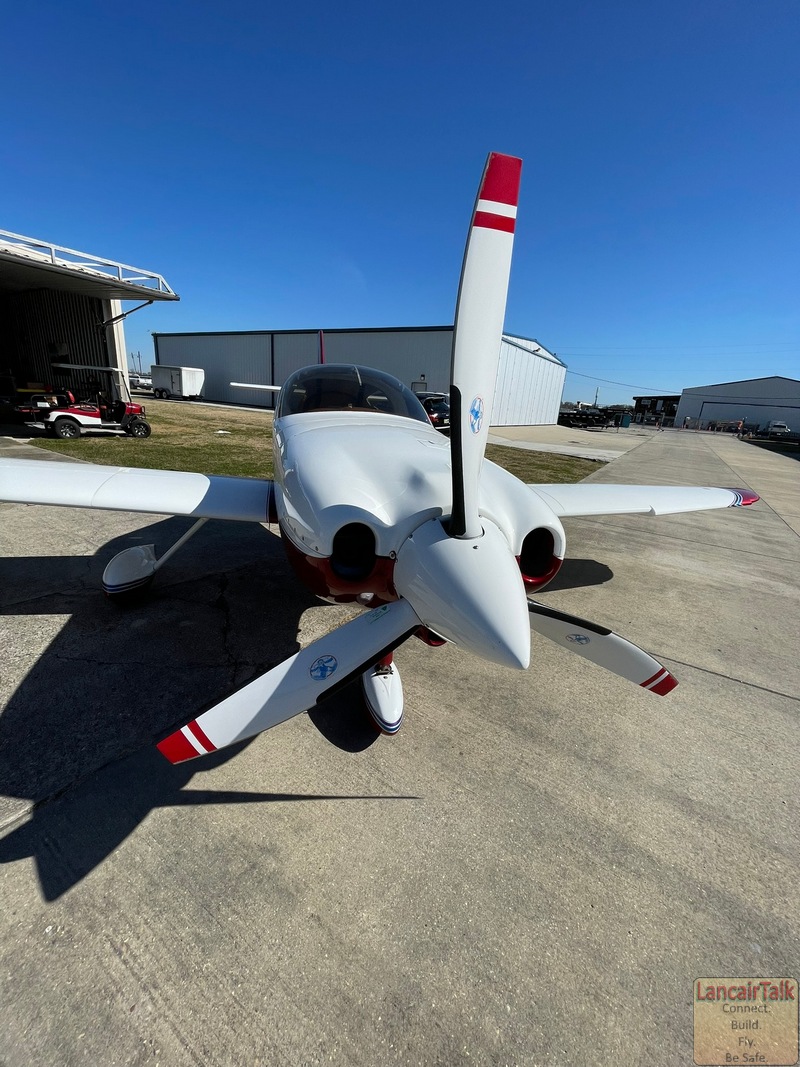

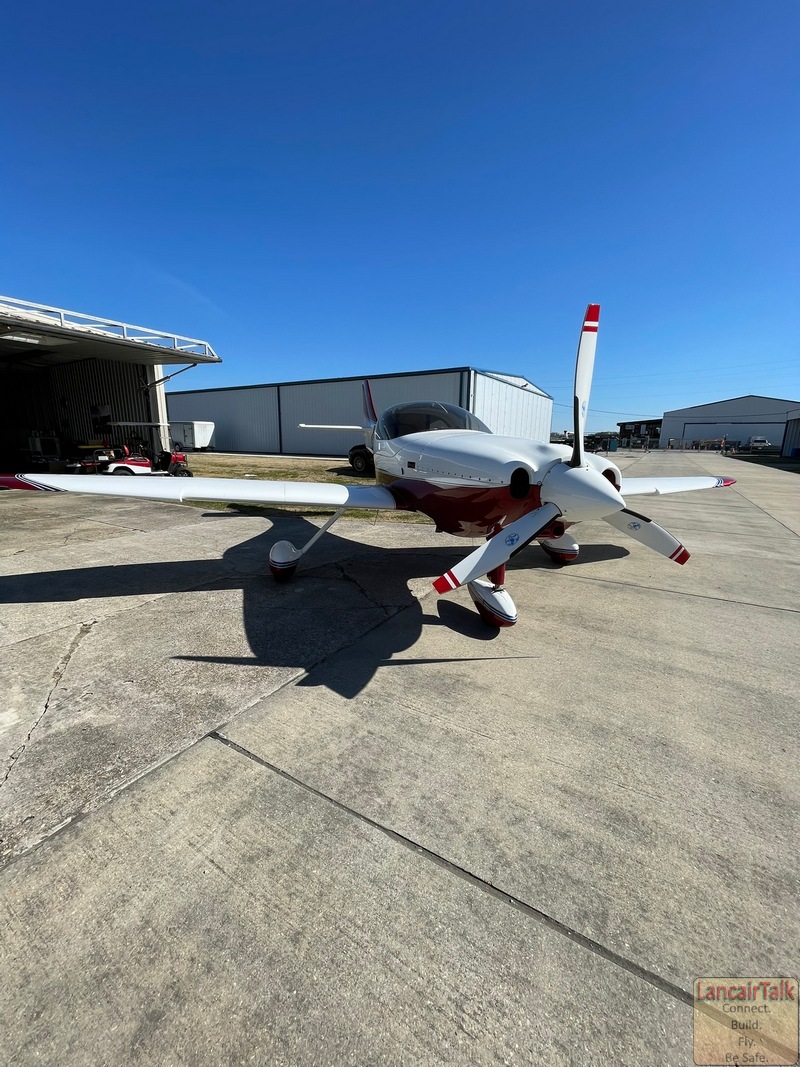

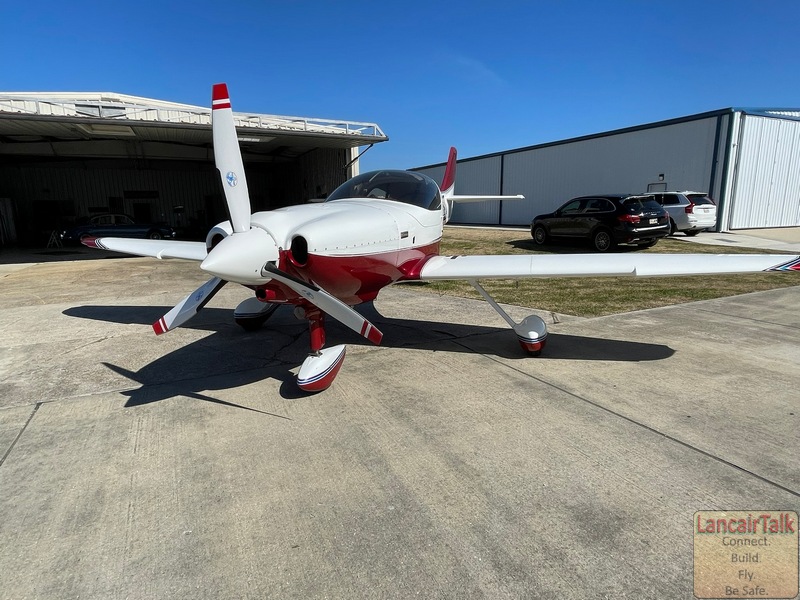

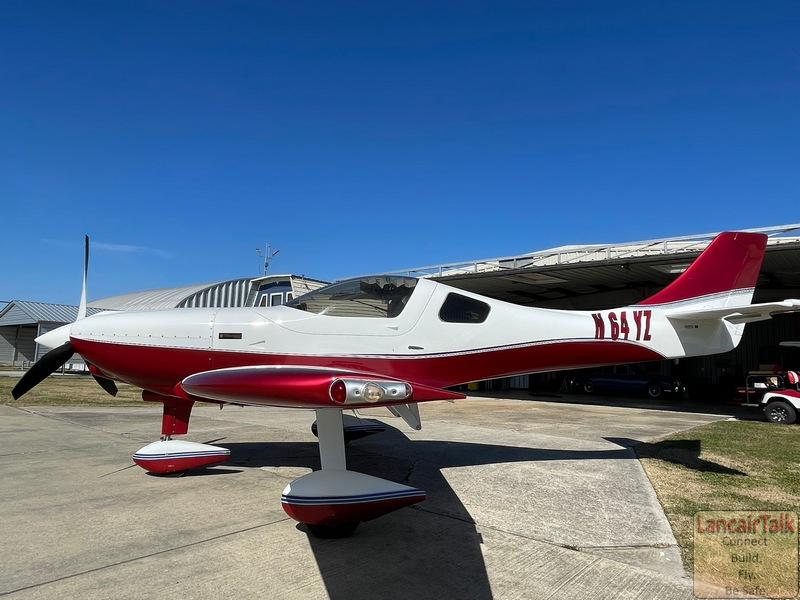

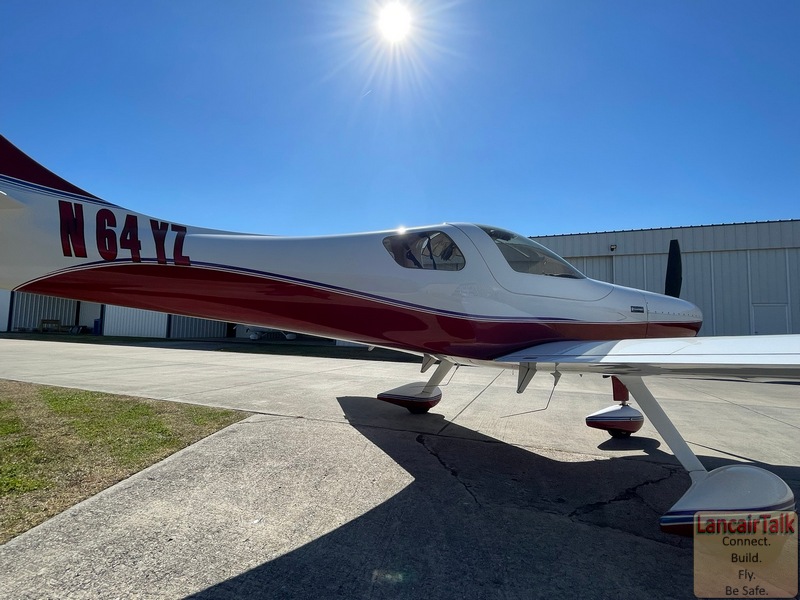

Terrific value in experimental aviation, this Lancair Legacy FG cruises at 185 KTAS and has operating costs far below certified aircraft. In pristine condition with a factory new Lyc Thunderbolt IO-540 (300 SNEW) engine and MT prop this Legacy can cruise safely, reliably and will have reasonable insurance options. Don't hesitate to move forward because this is a rare opportunity.
Specifications
- Engine Lycoming IO-540
- Avionics Glass-panel equipped
- Prop MT Propeller
- Seats 2-seat
- Location Southeast US
- Target Cruise 180-185 KTAS

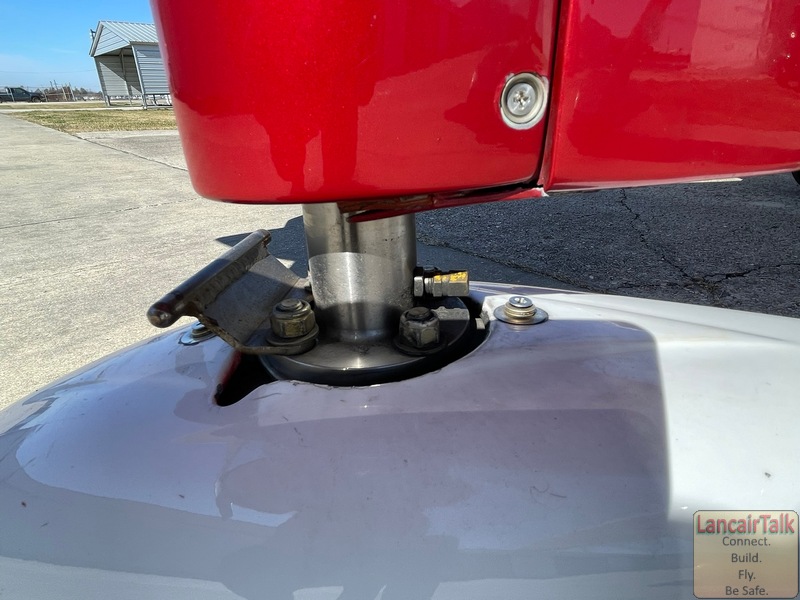

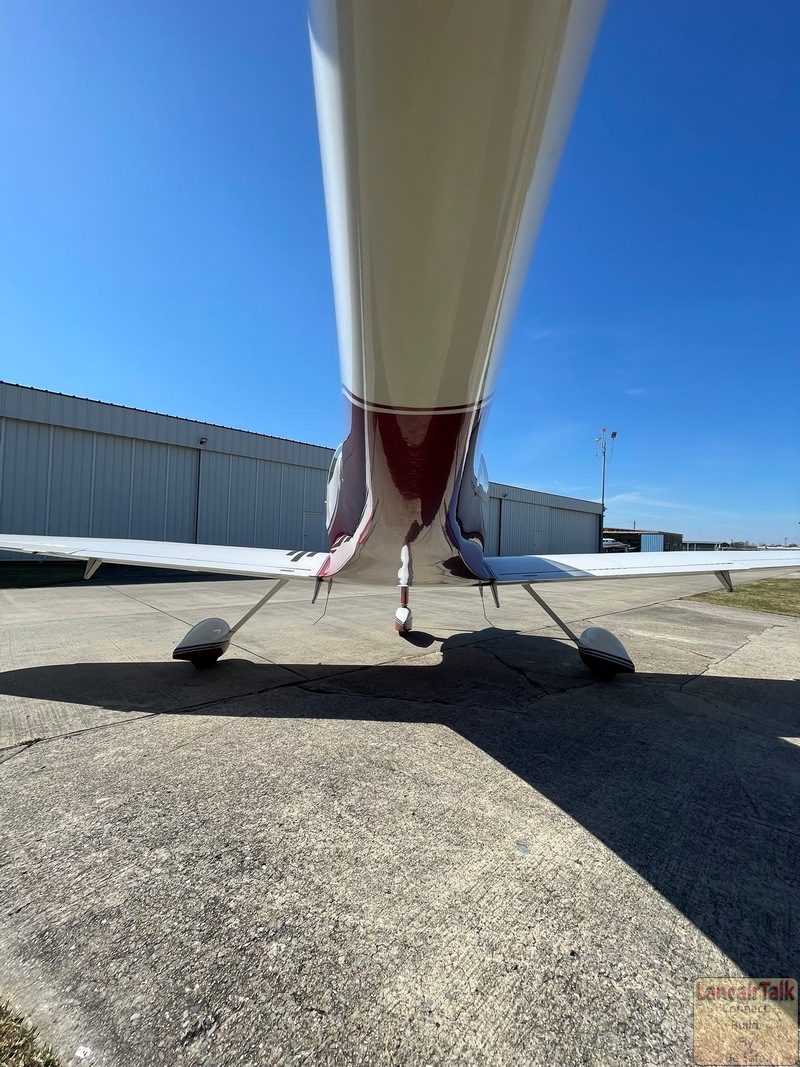

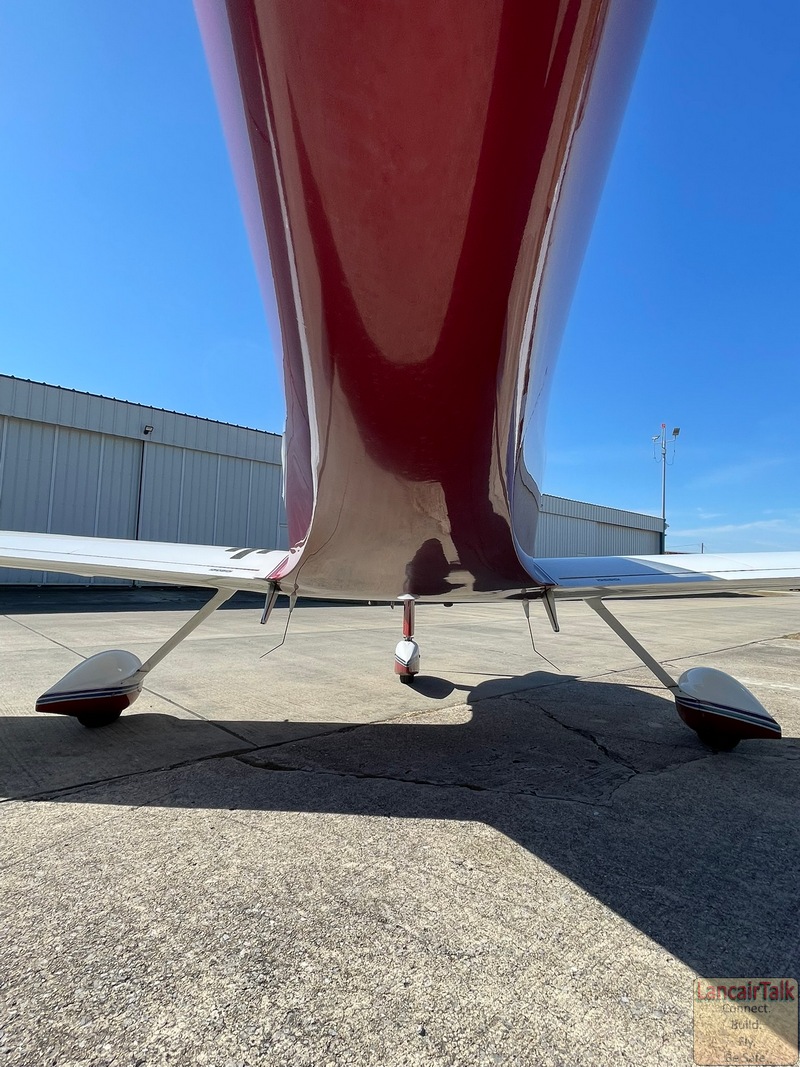

- Configuration Legacy Fixed Gear
- Flight Rules IFR/VFR/Day/Night
Insurance and Training
Insurance: Insurance placement guidance is included to help buyers evaluate coverage pathways before making an offer.
Training: Transition training resources are included with this purchase subject to conditions.
Financing: Financing is available for Lancairs. Coordinate financing before making an offer on this Legacy.
Equipment
- Legacy FG (Fixed Gear) 2017 LS-219 600TTSN

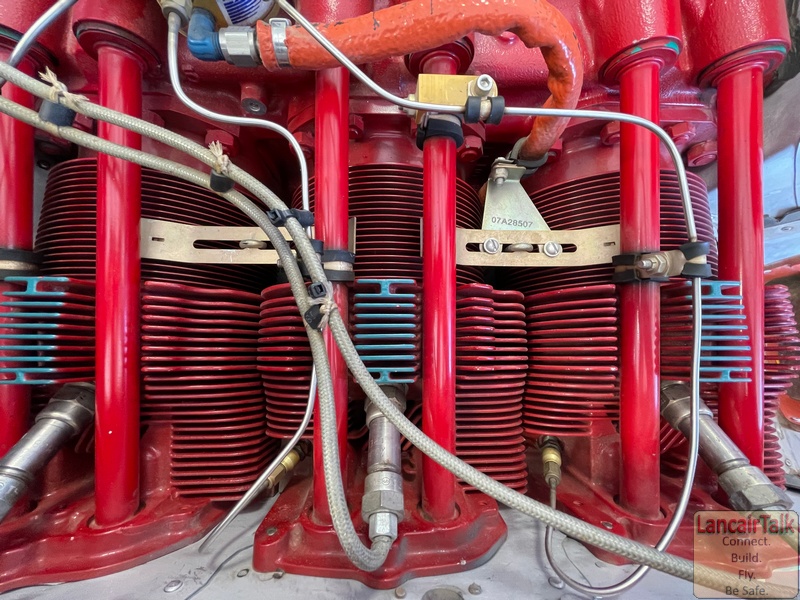

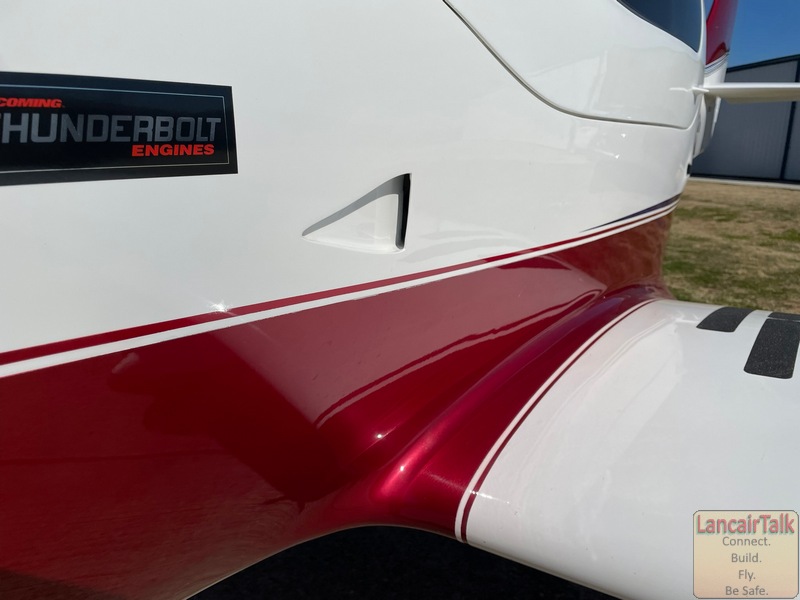

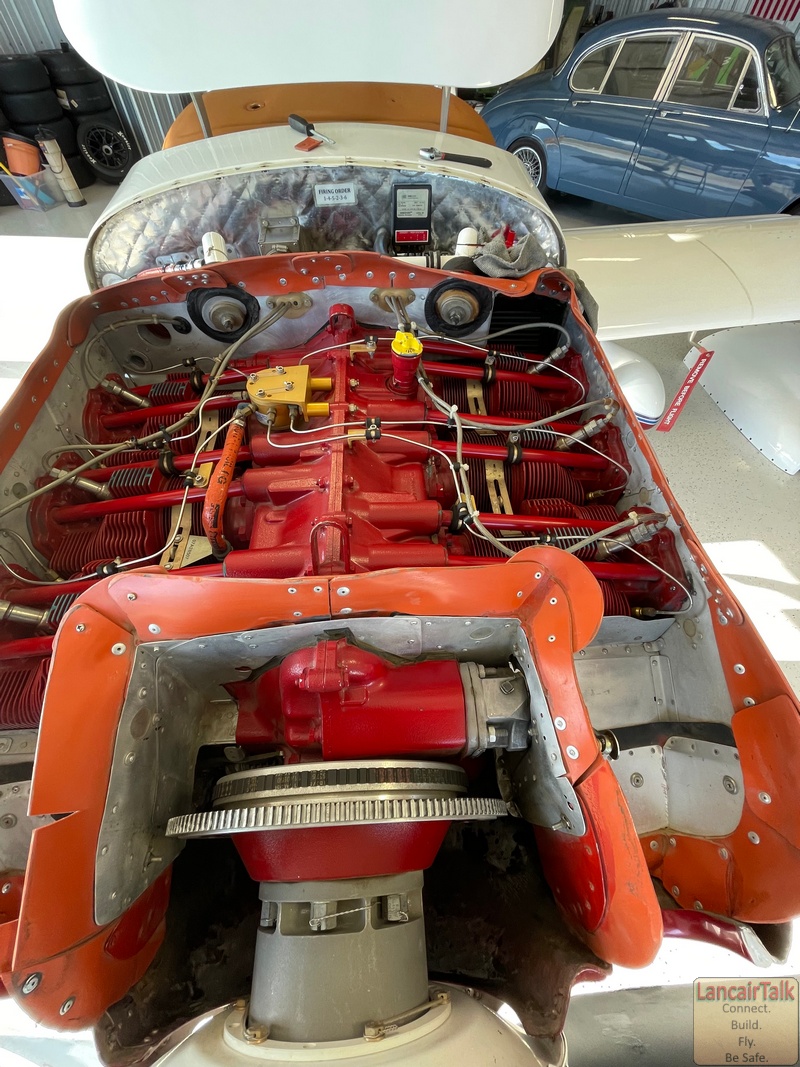

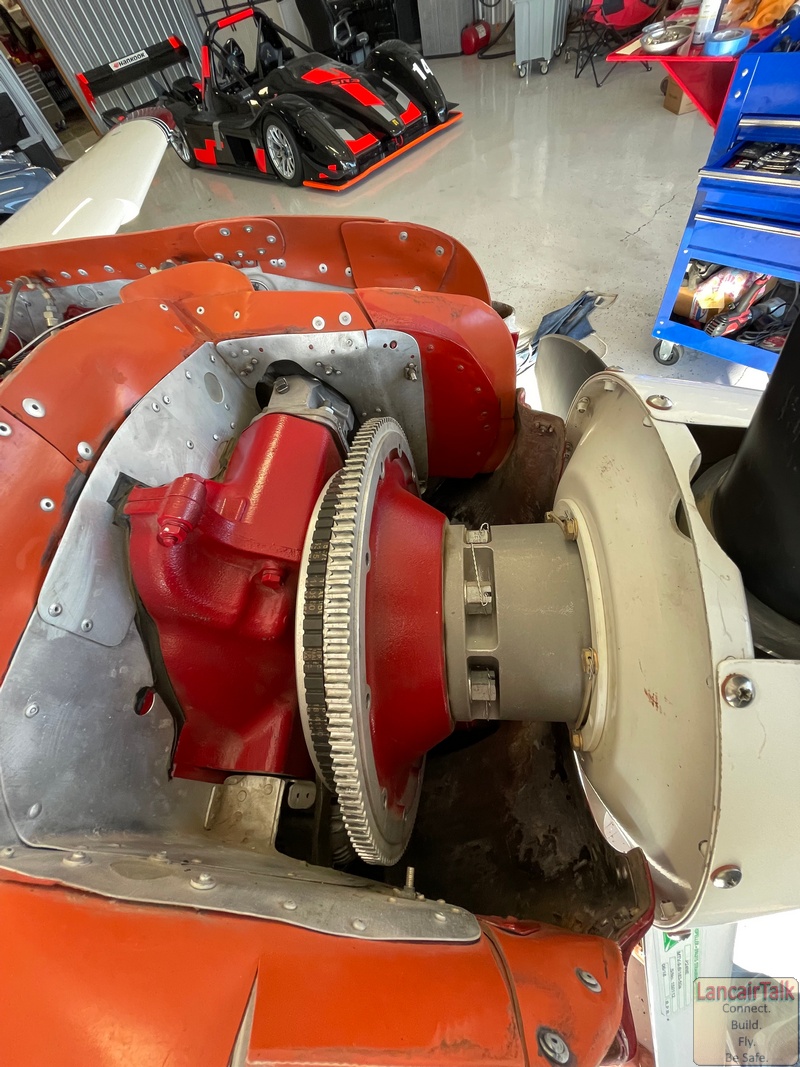

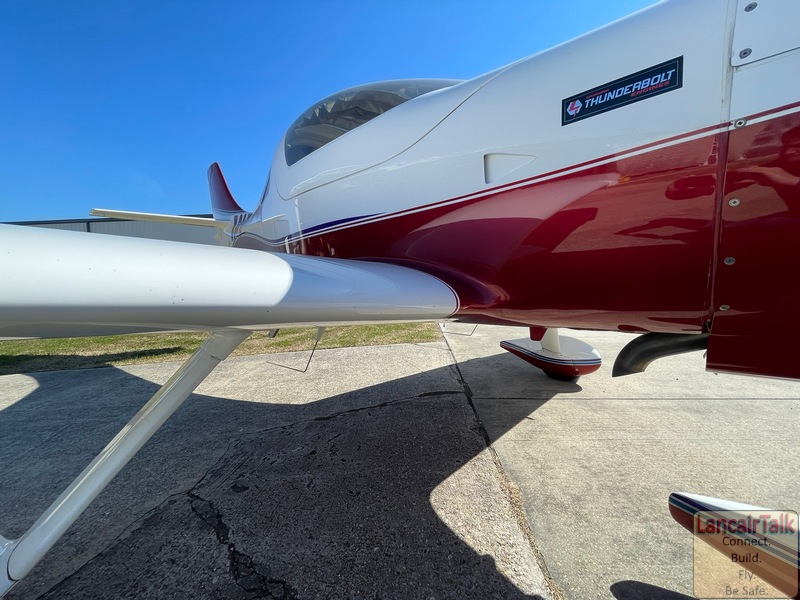

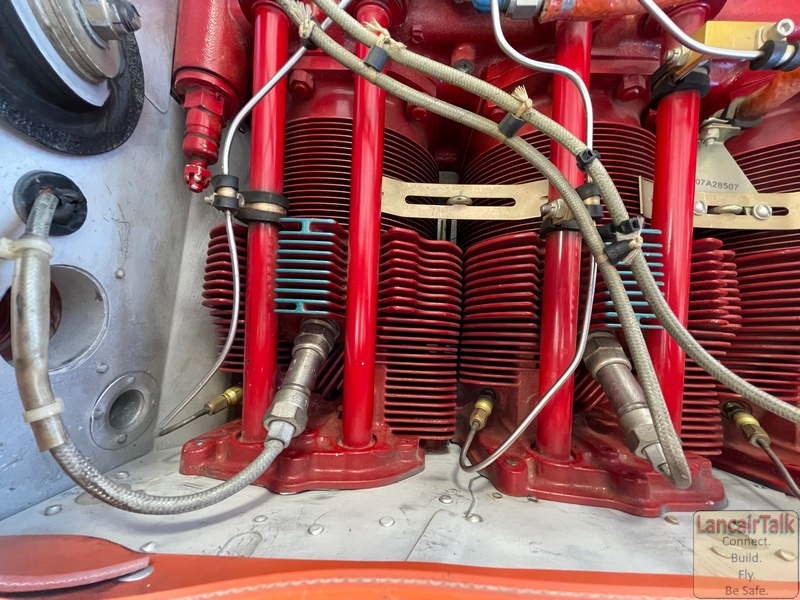

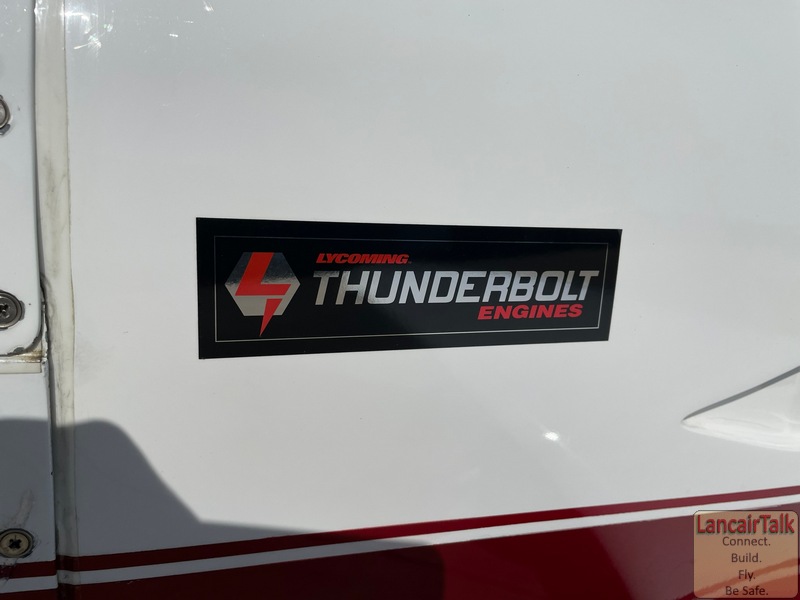

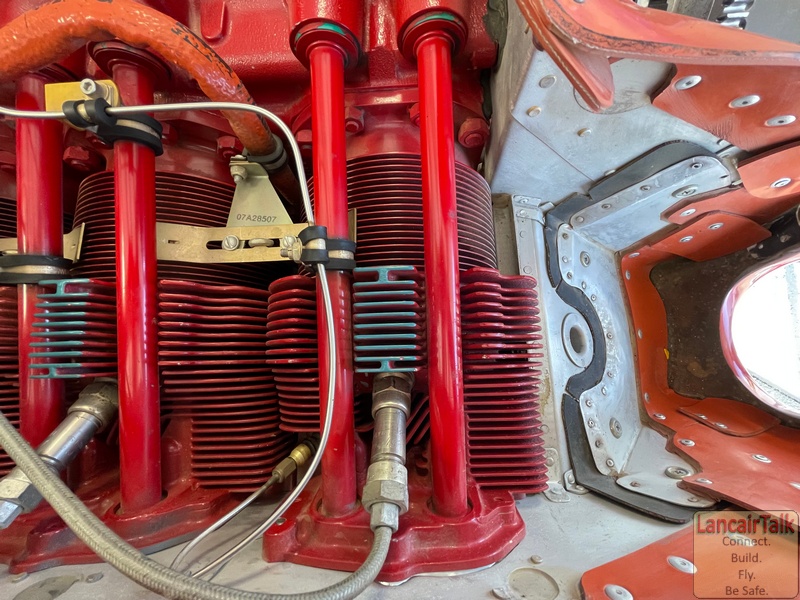

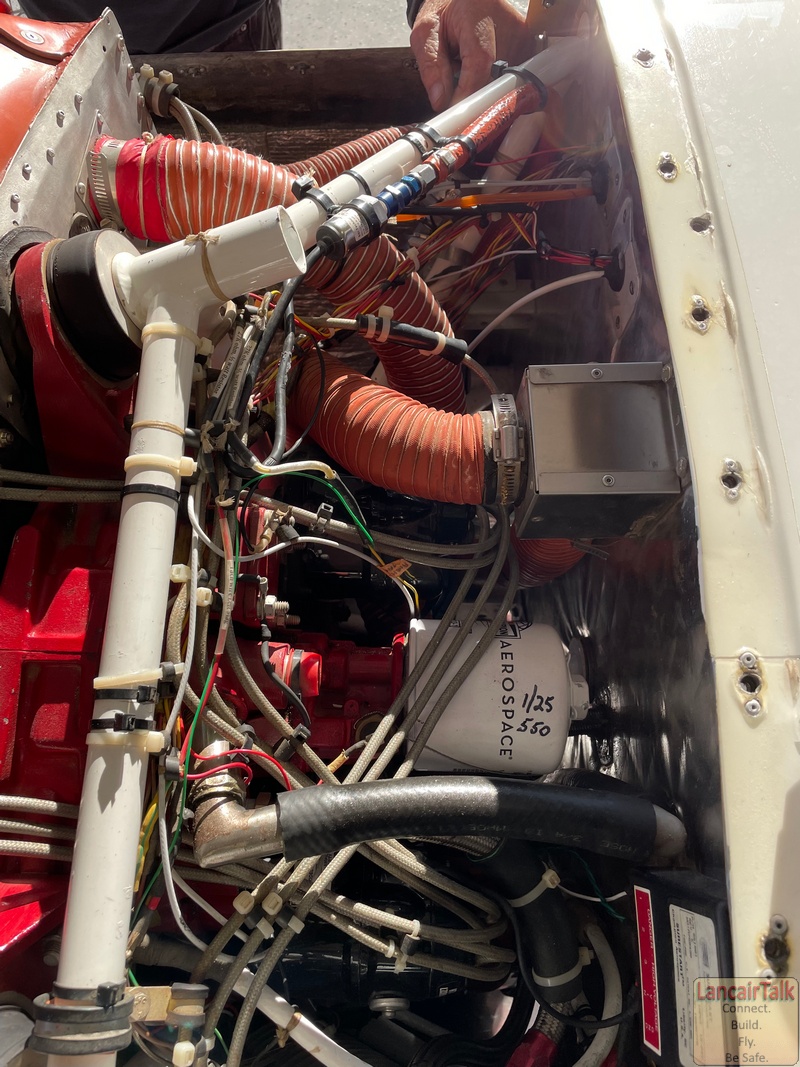

- Lycoming IO-540 Thunderbolt 6-cyl YiO-540-EXP97 s/n EL-37092-48E 300 TTSN (SINCE NEW)

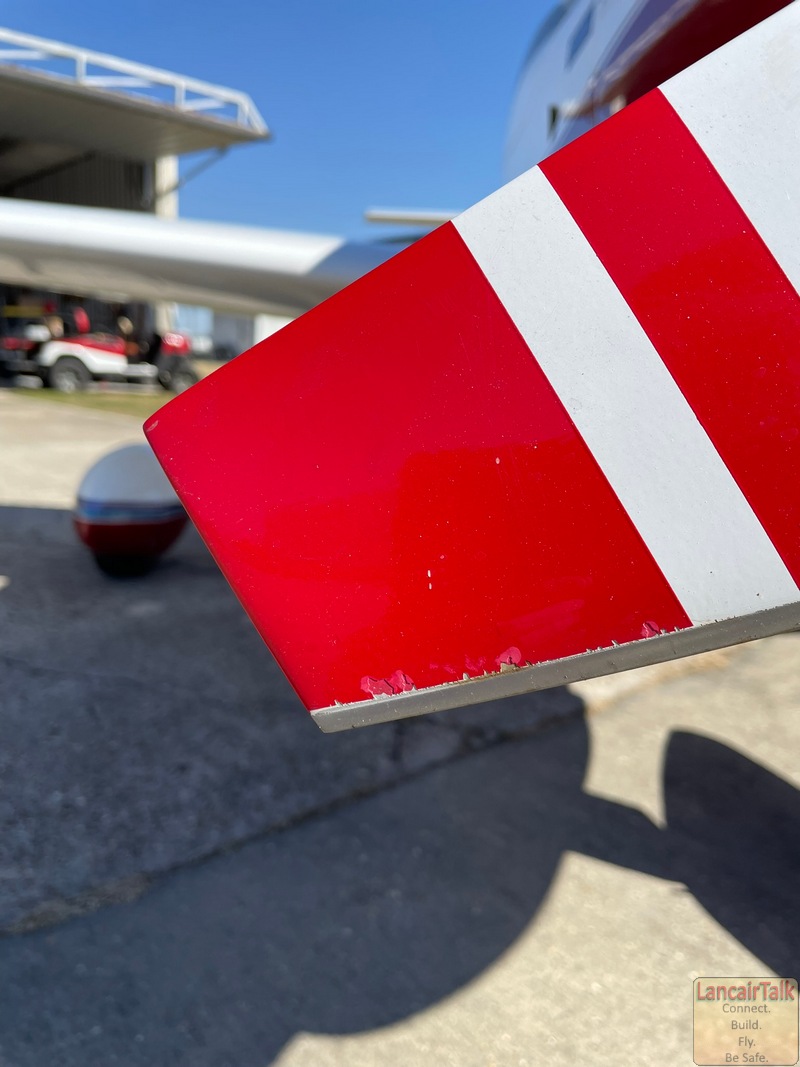

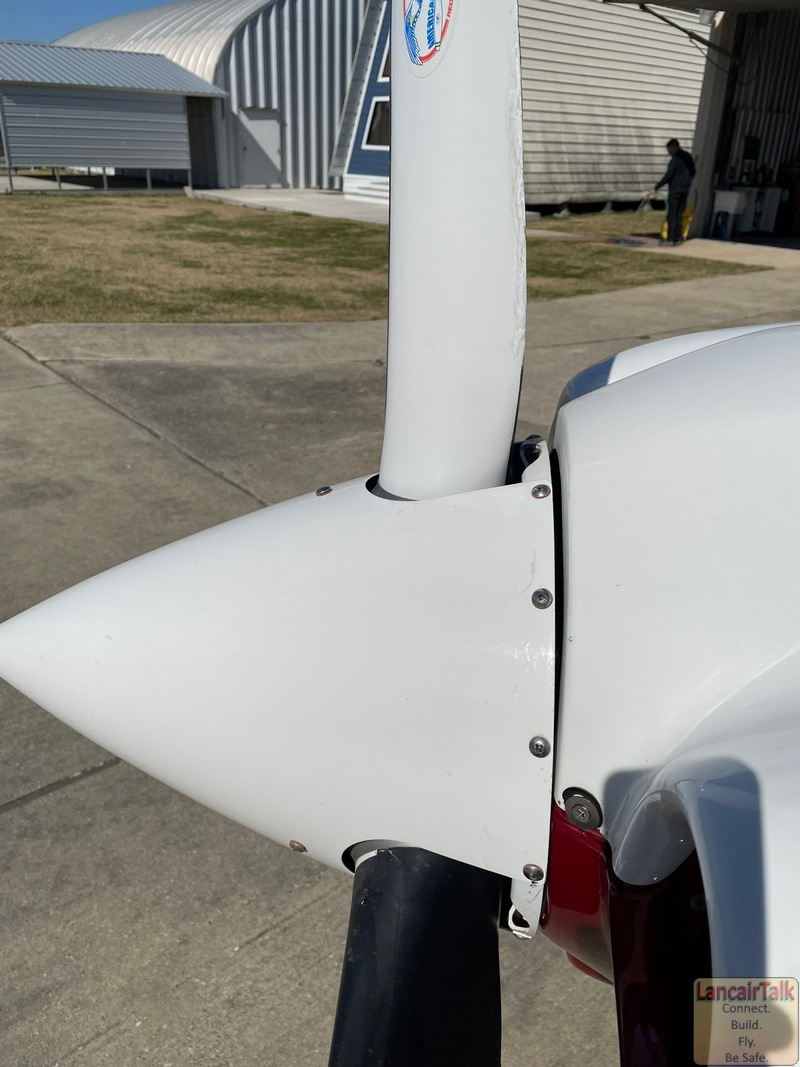

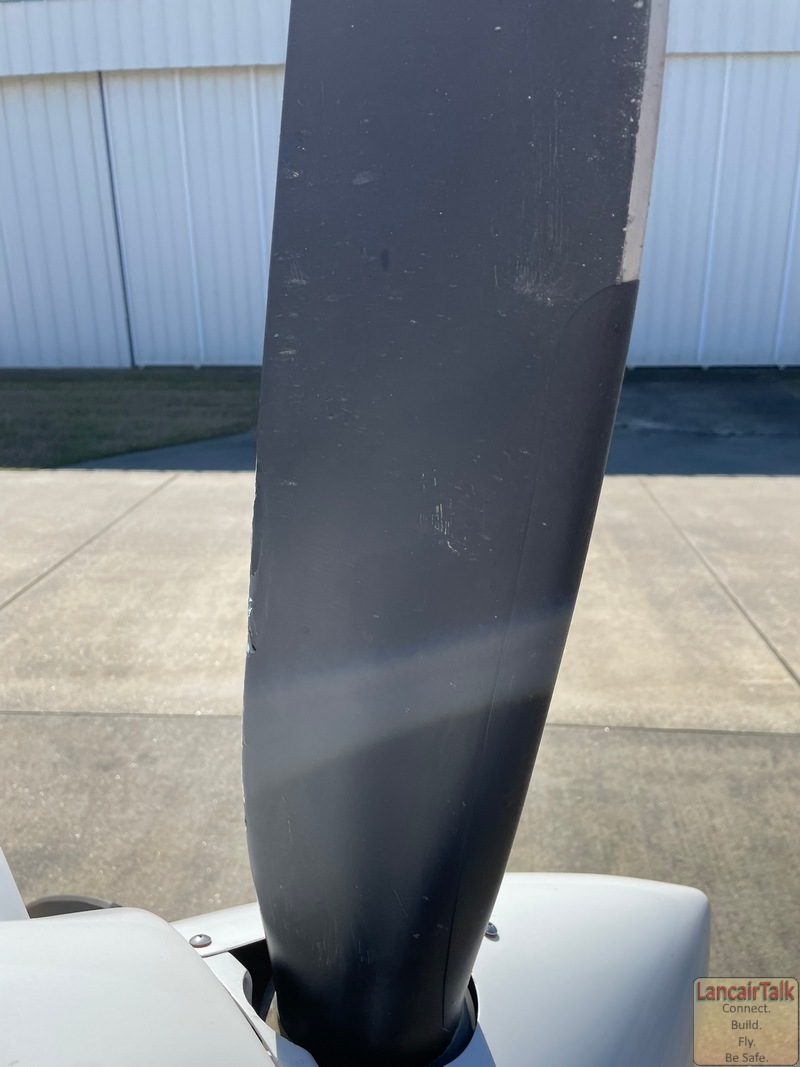

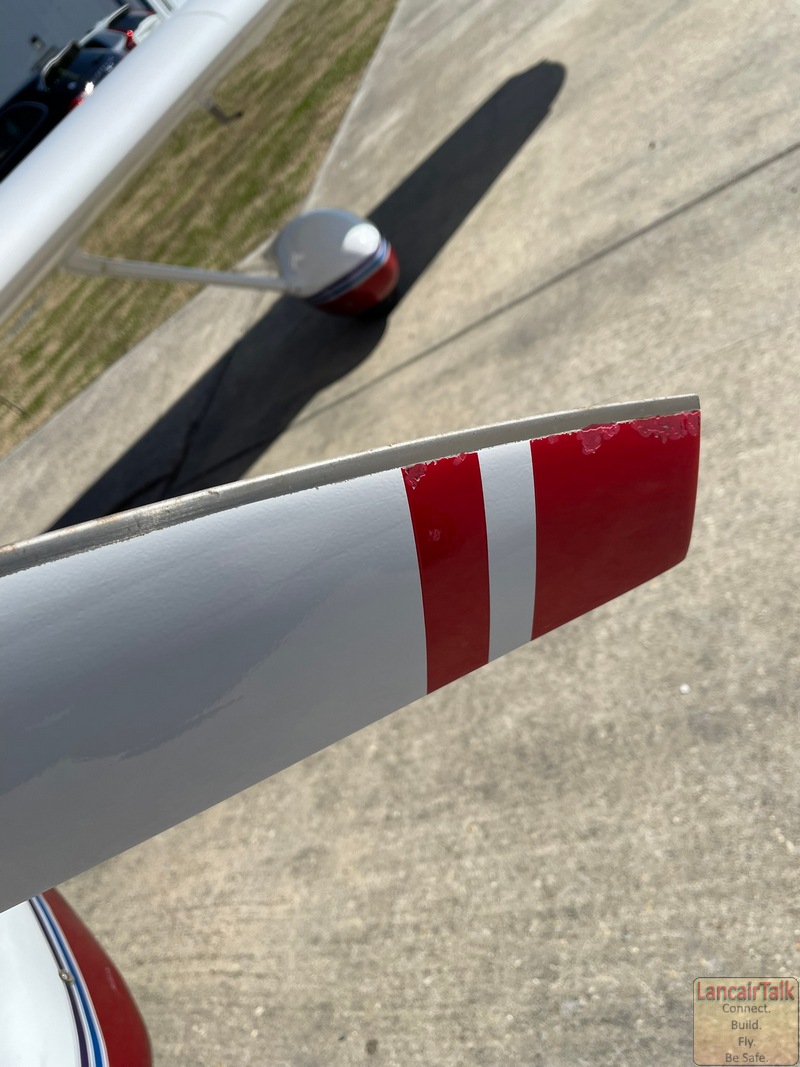

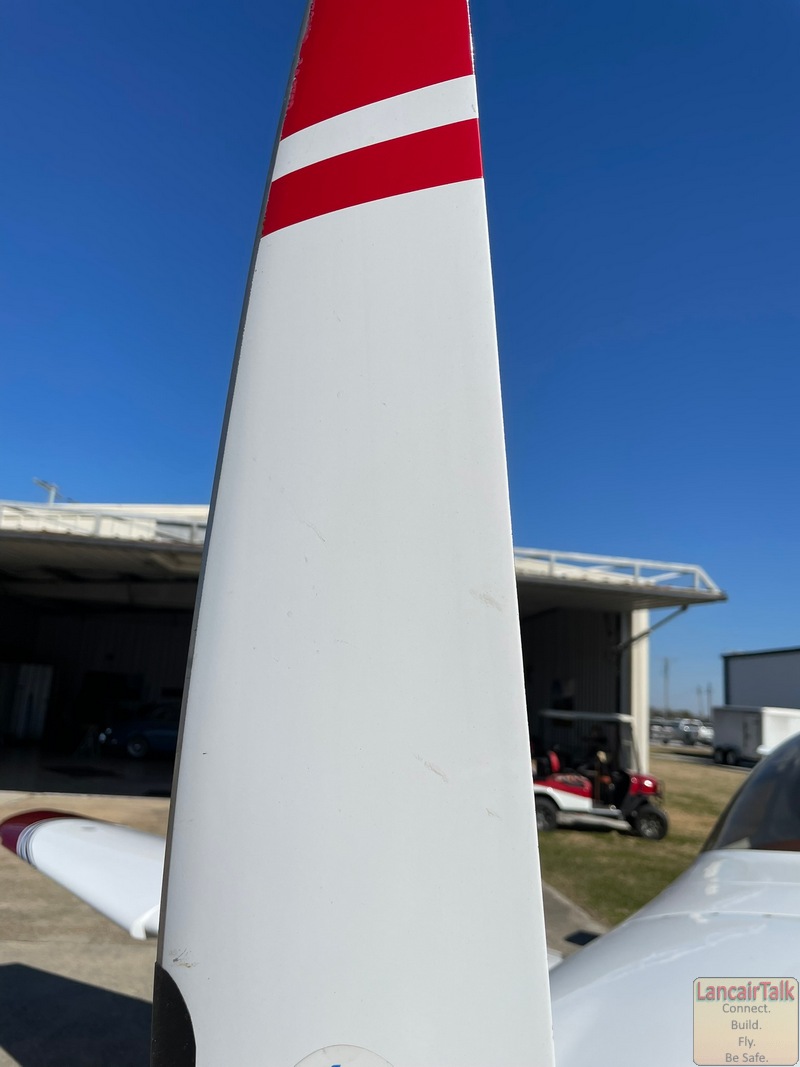

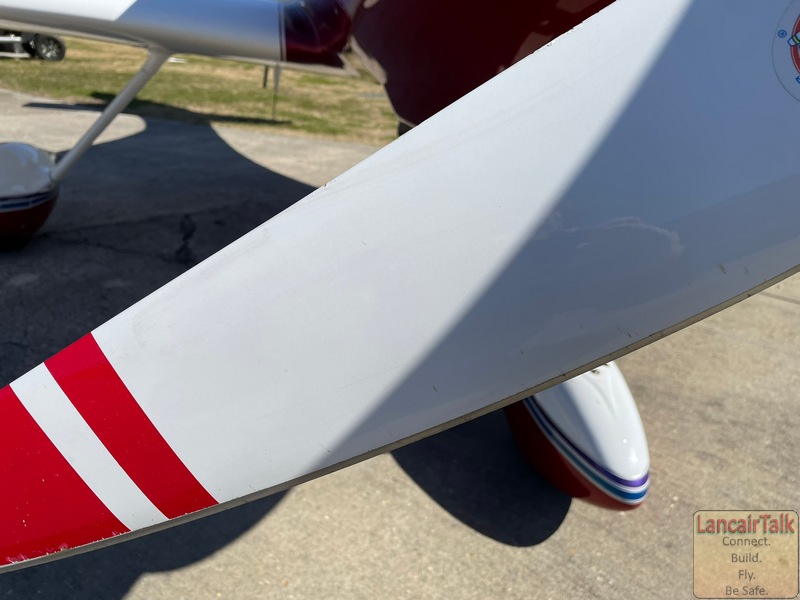

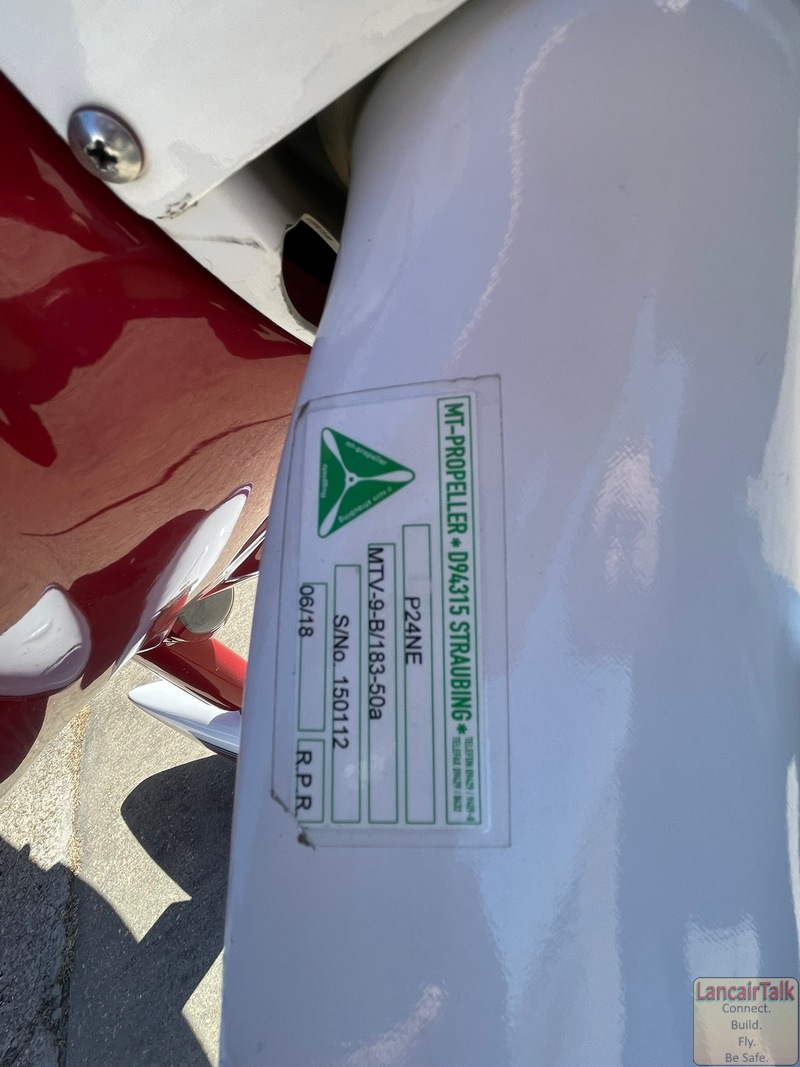

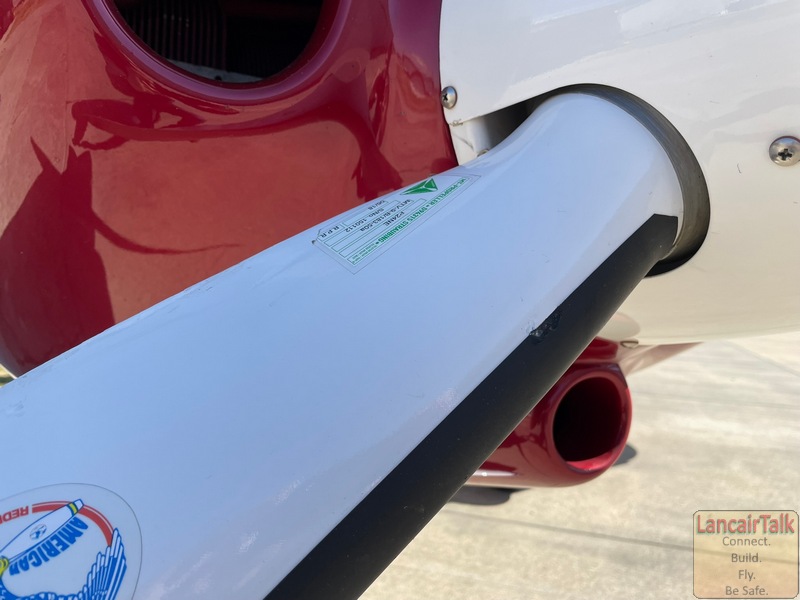

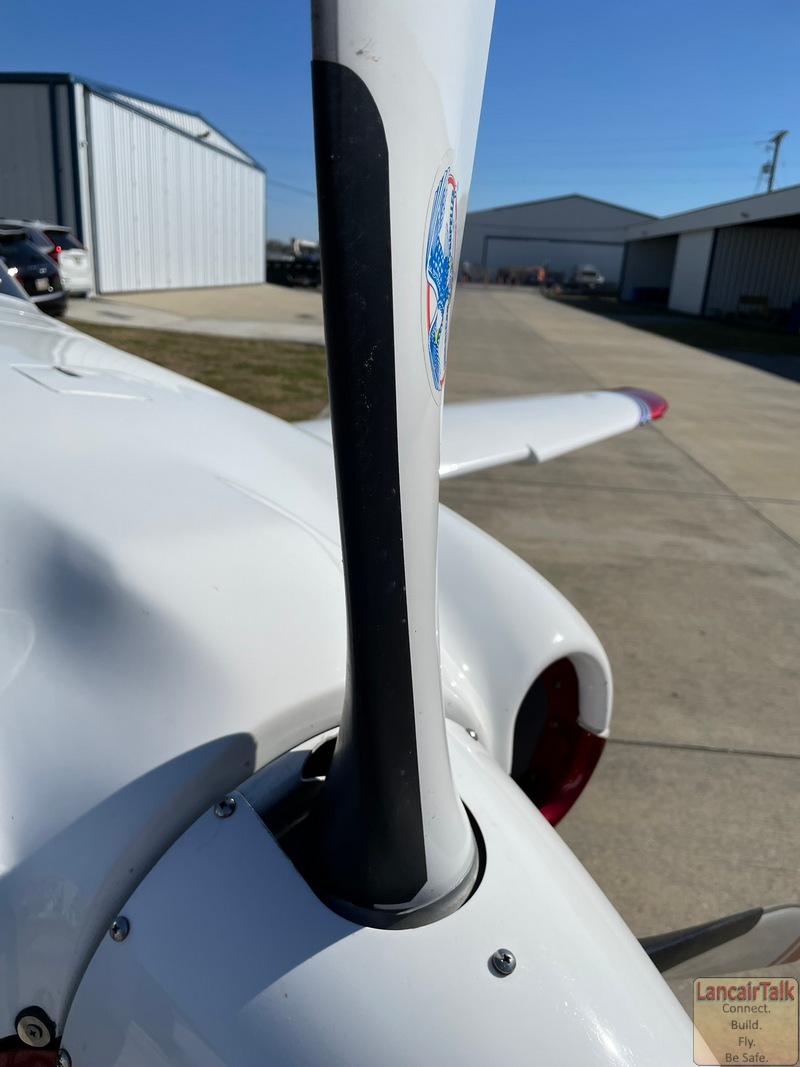

- MT-Propeller MTV-9-B Hub s/n 150112 blade 183-50a New 02/15

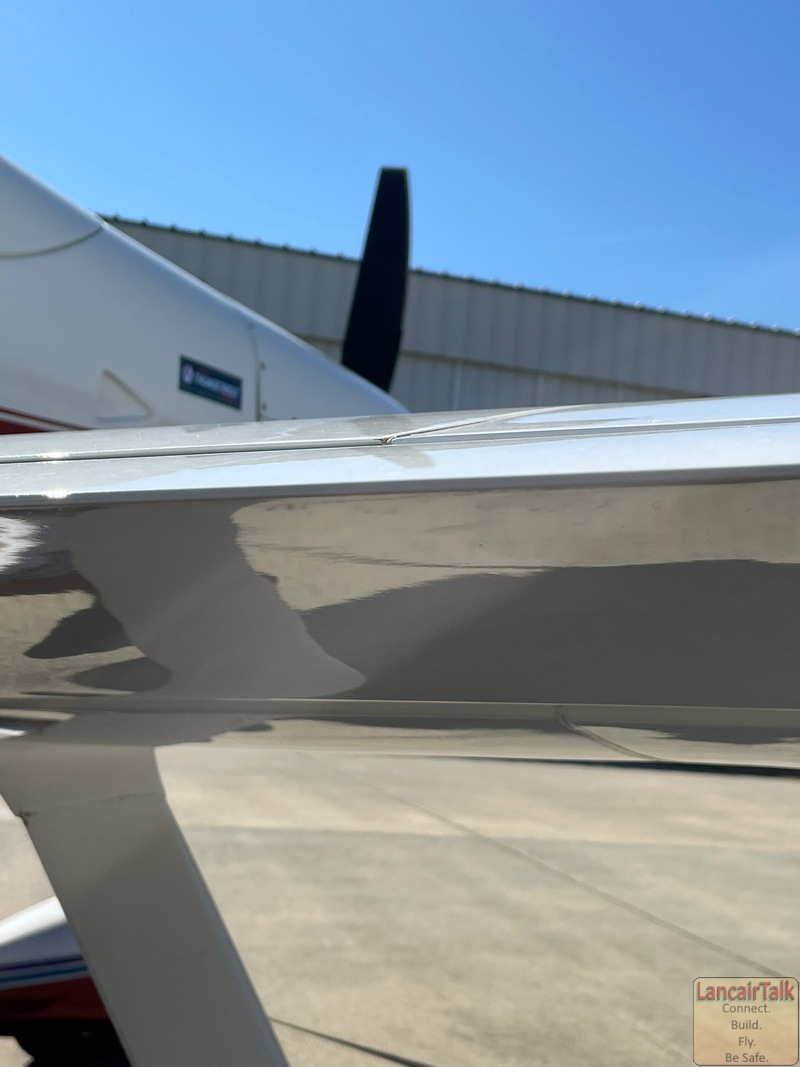

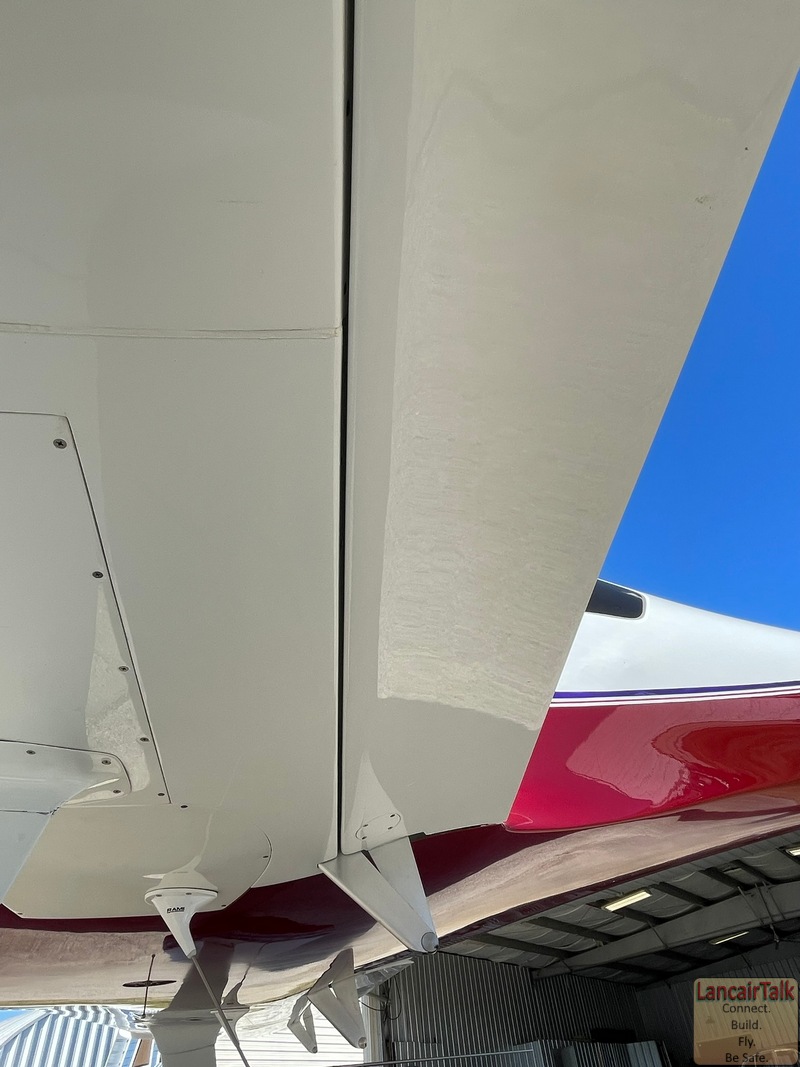

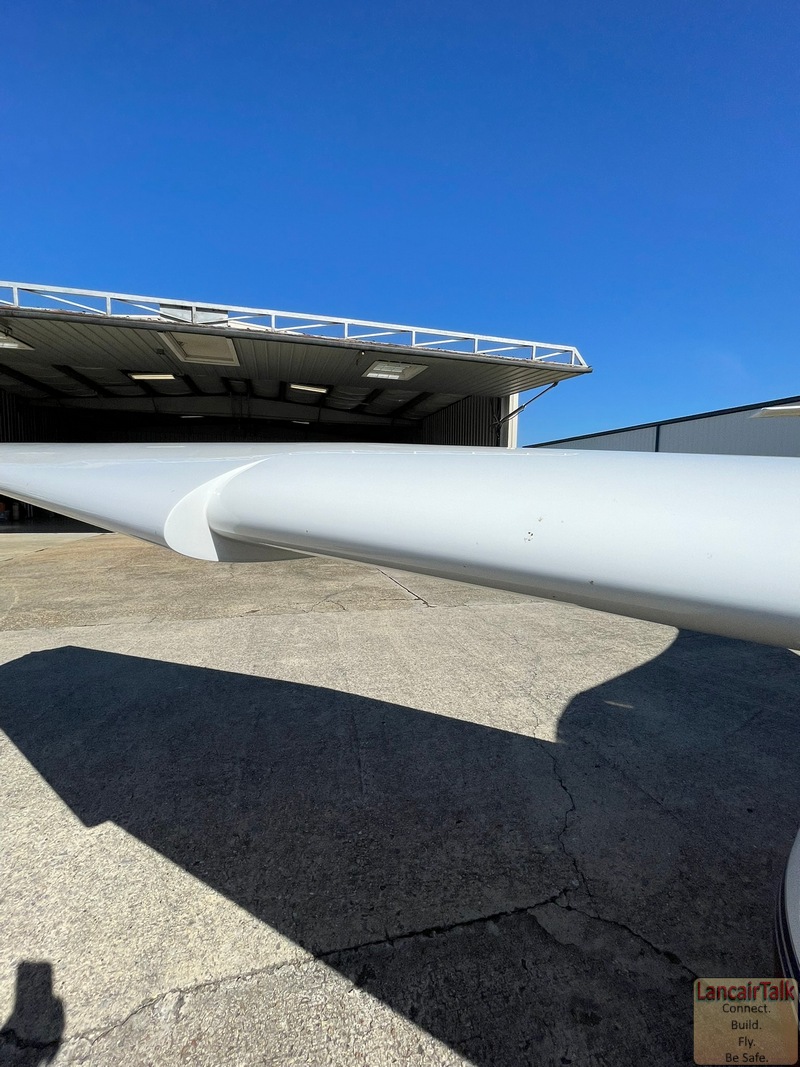

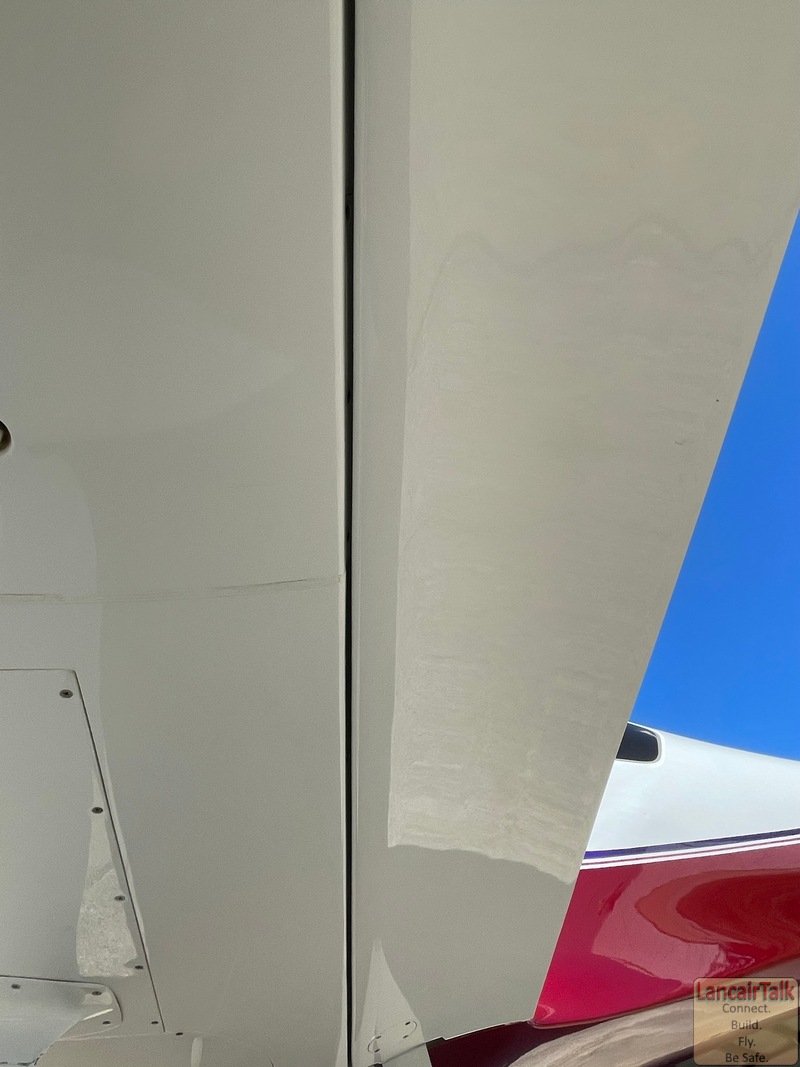

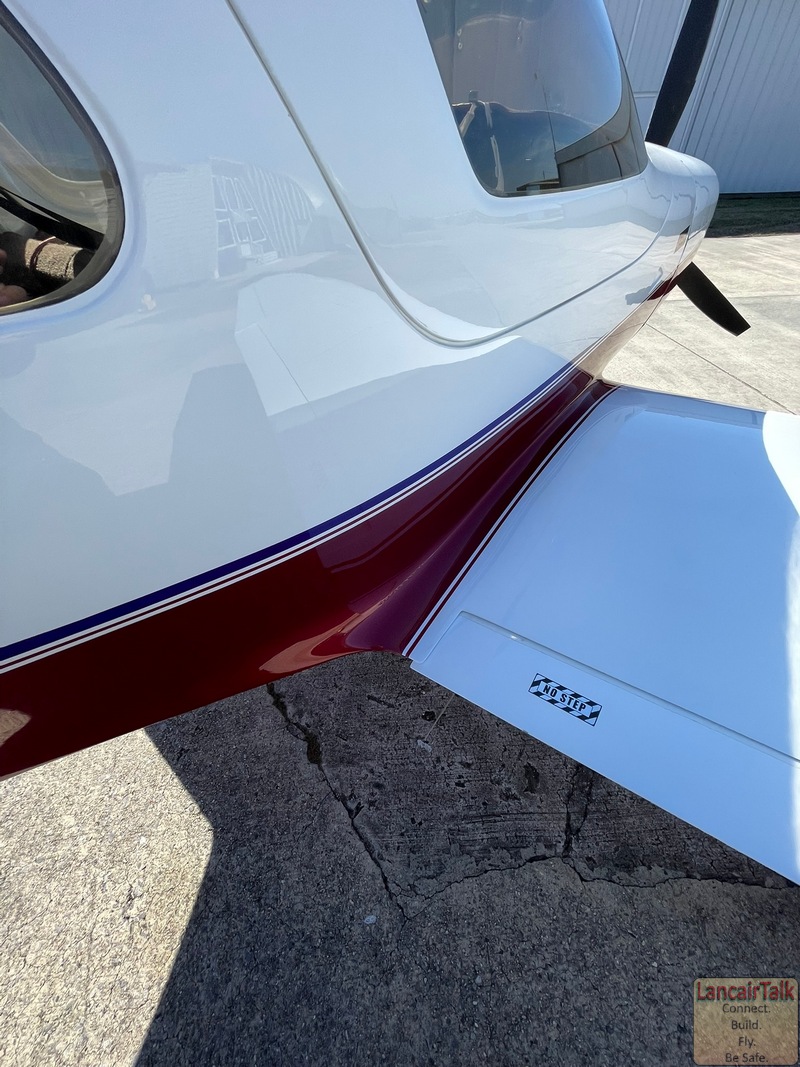

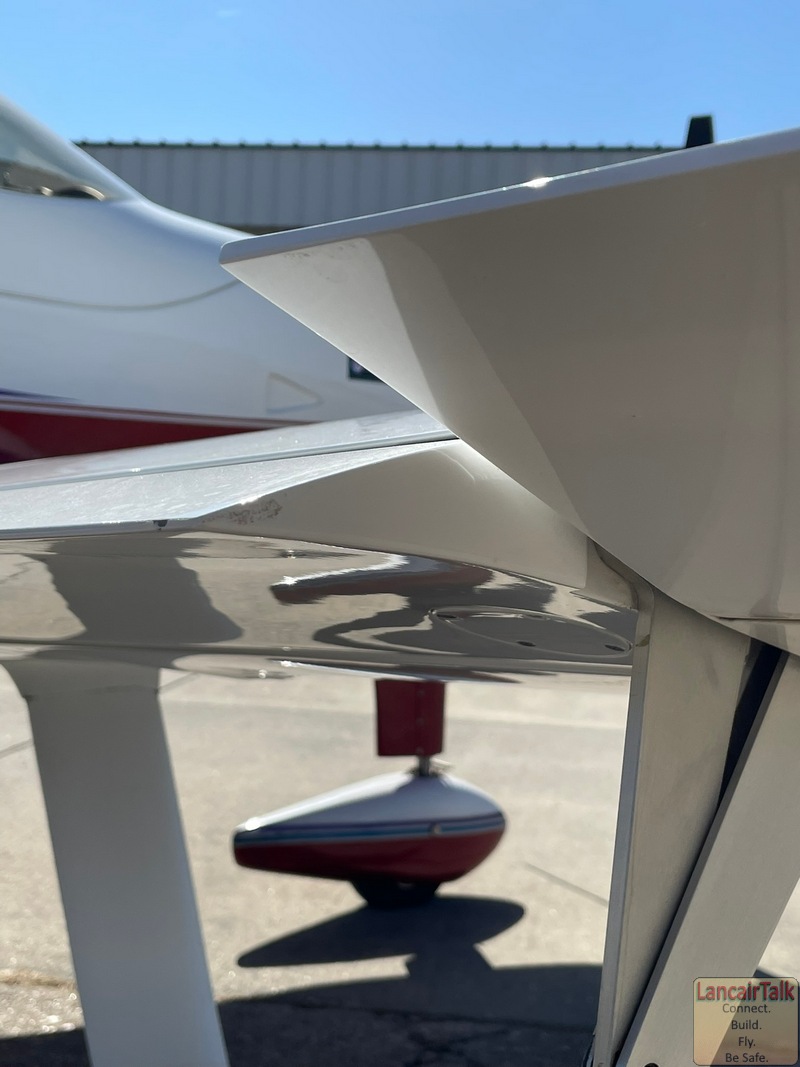

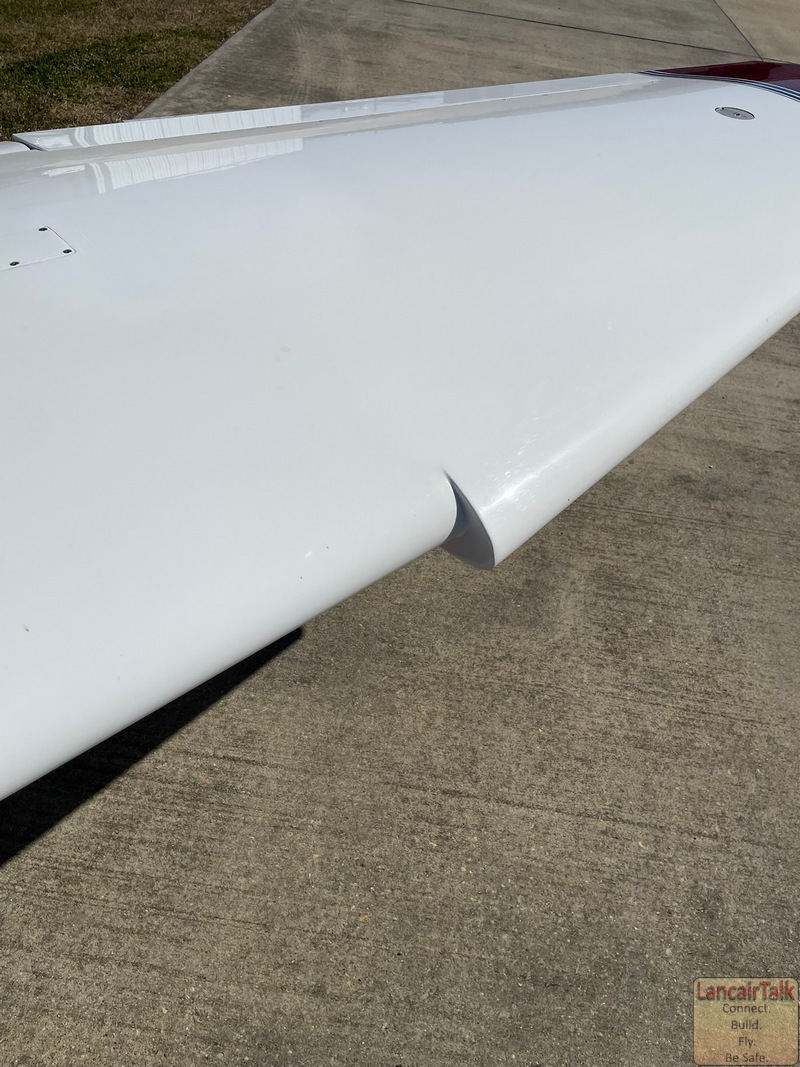

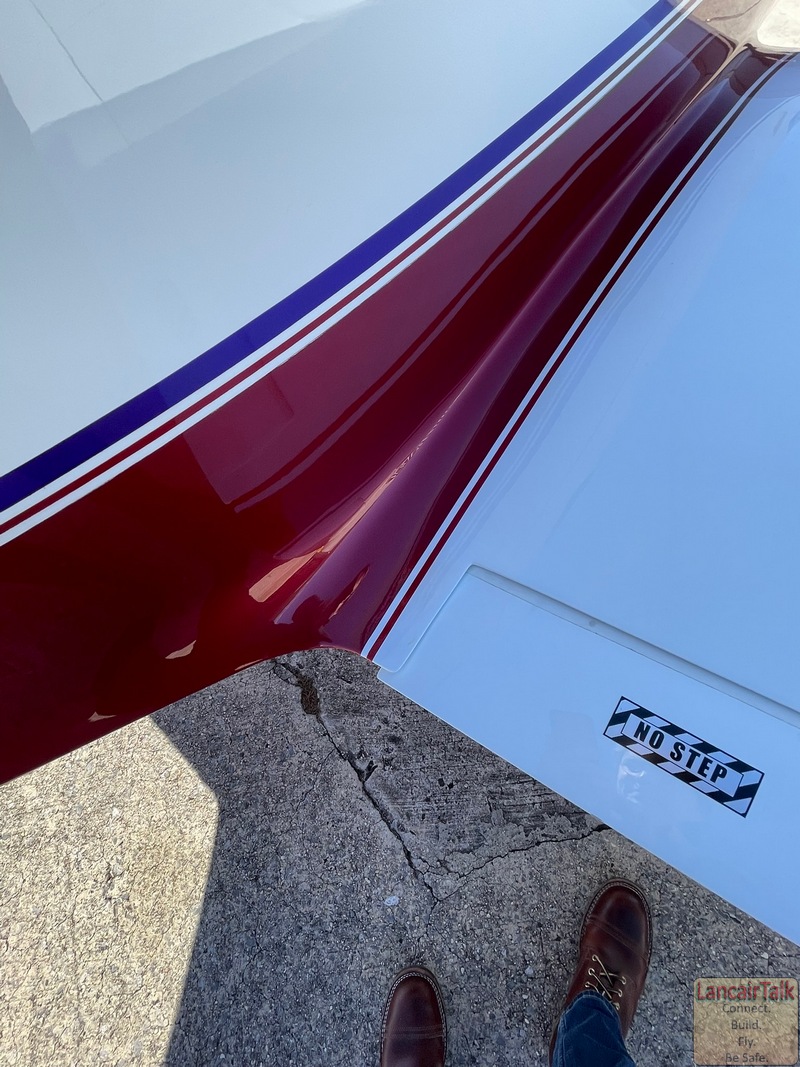

- Lancair 'Wing Cuff' modification

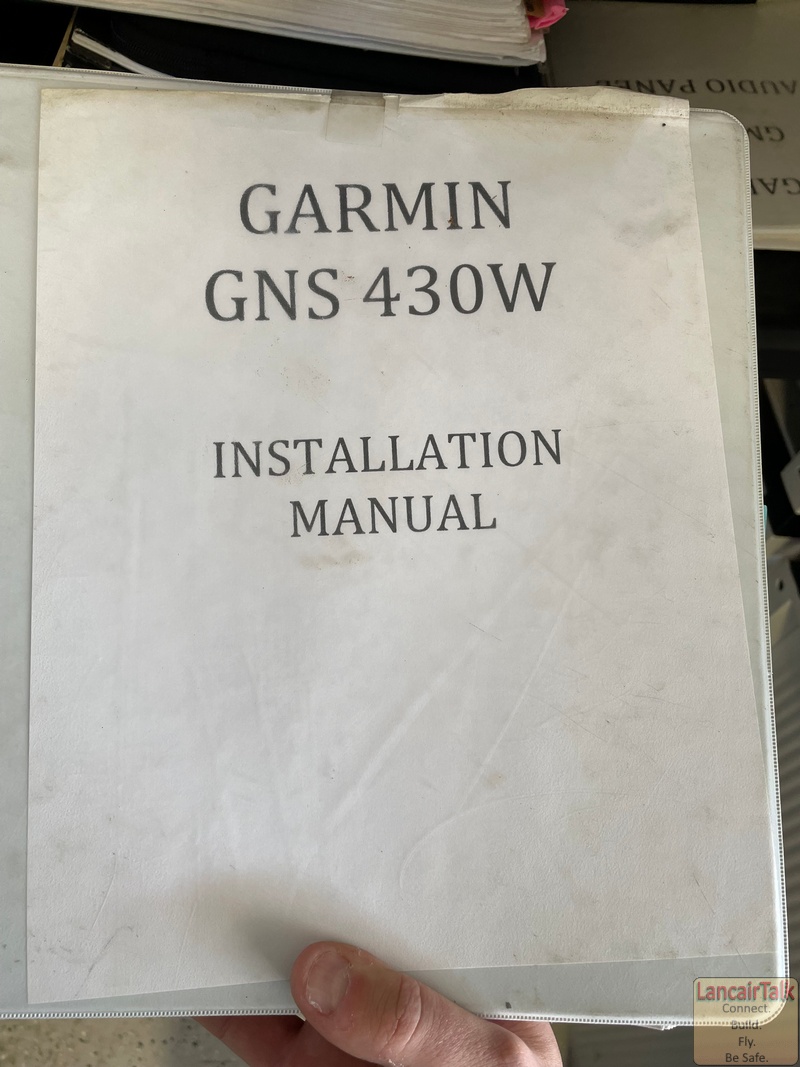

- Garmin 430W WAAS IFR GPS VOR ILS COM
- Garmin Audio

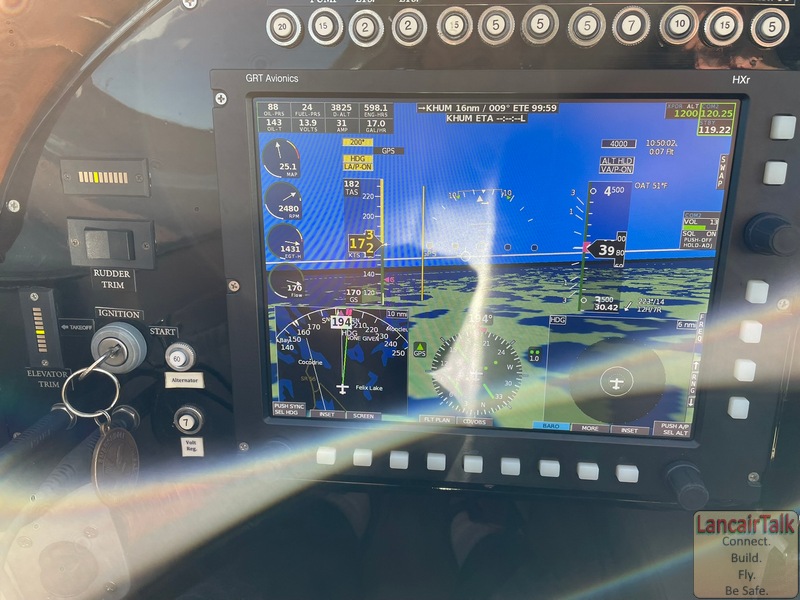

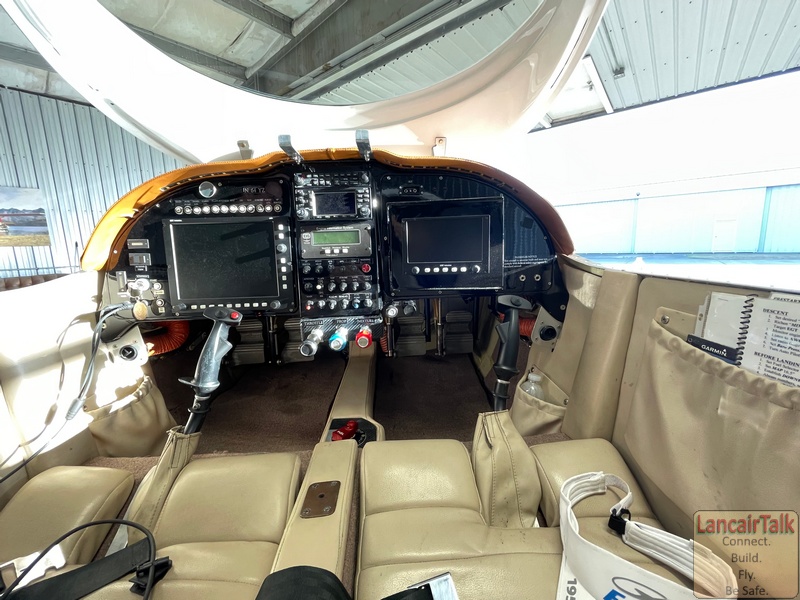

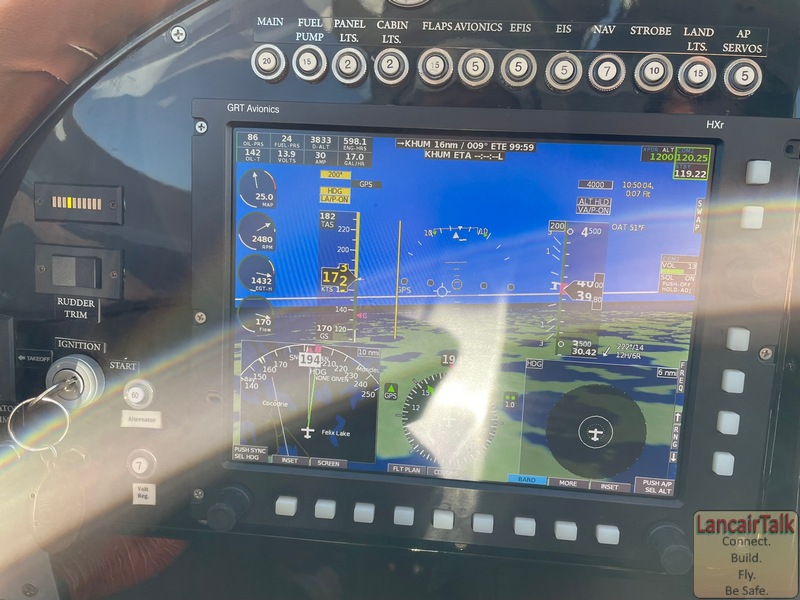

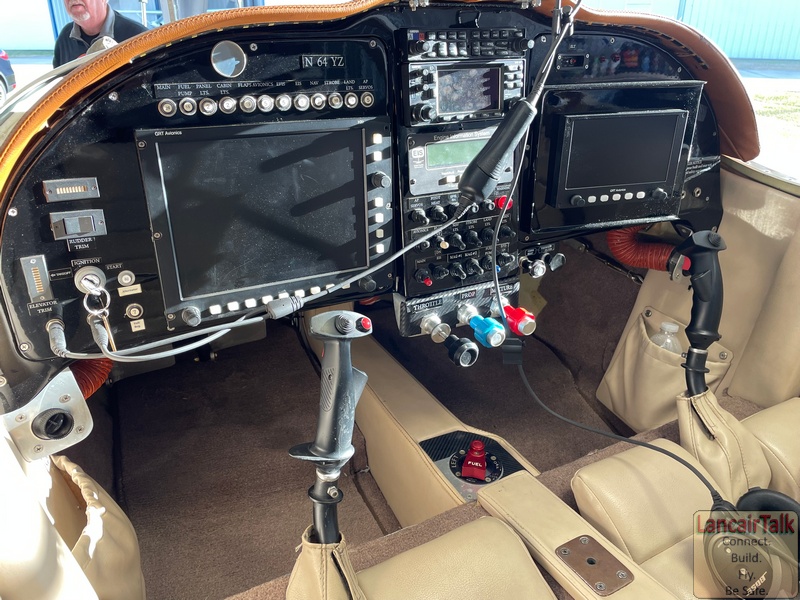

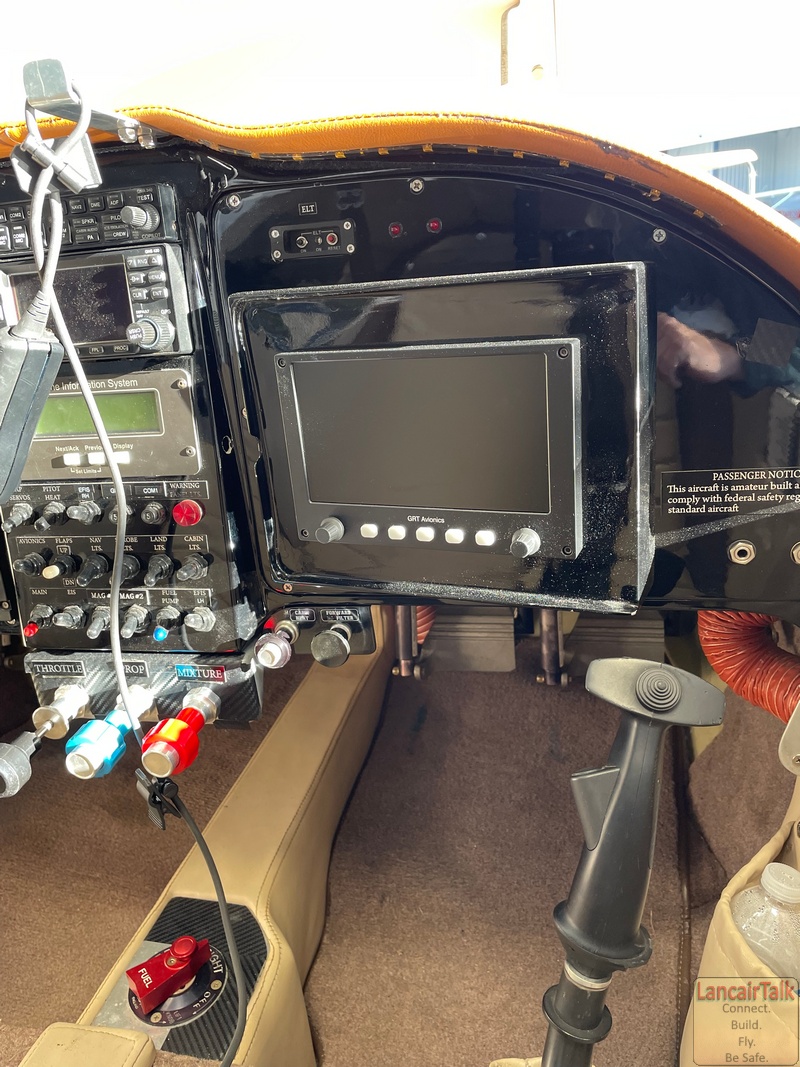

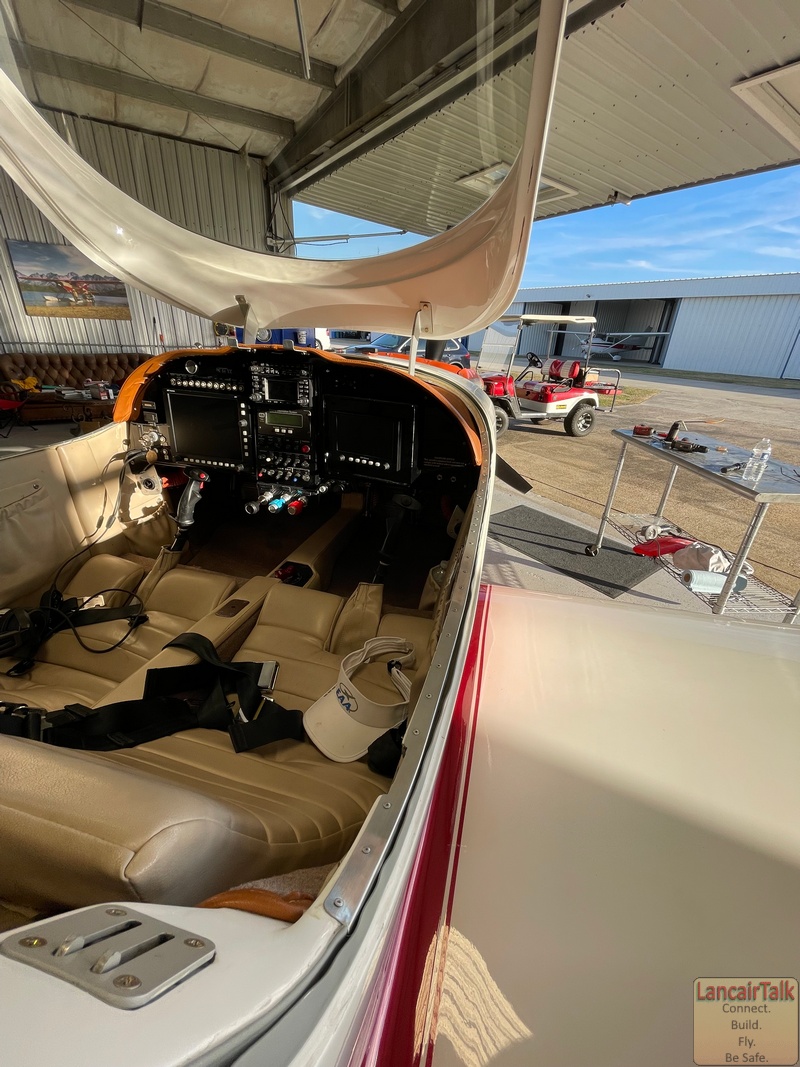

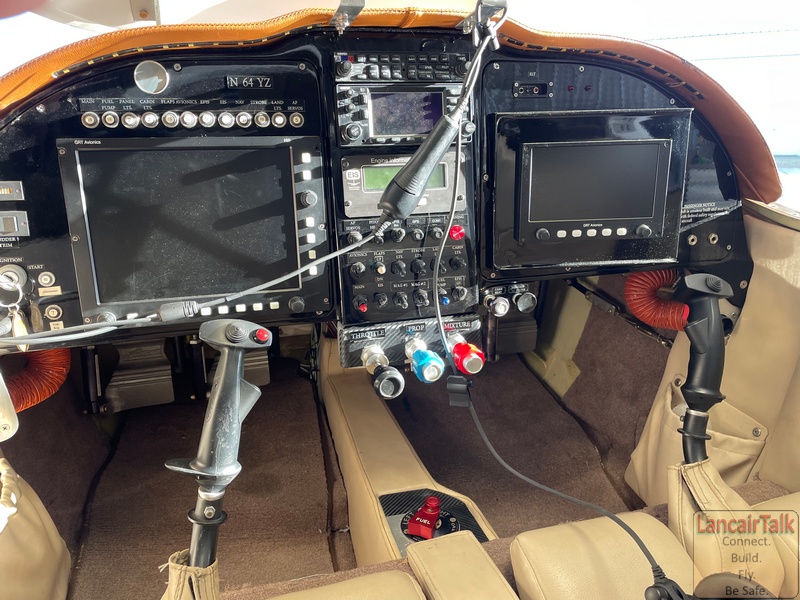

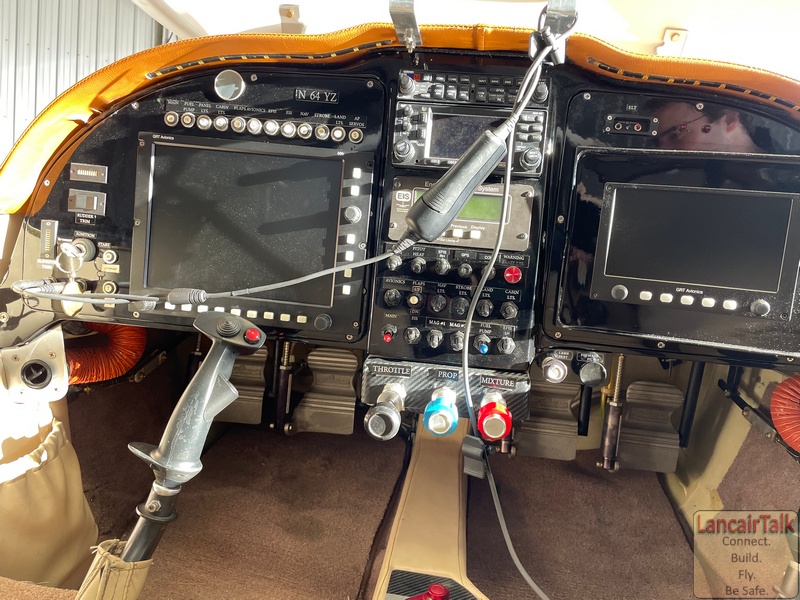

- Full GTR Pilot Suite, dual EFIS HxR 10.4 inch EFIS
- dual comm
- ADSB In/Out
- Nexrad
- EIS 6000
- IFR Checks Current
- 24-volt buss
- DC-DC Converter for 12v supply
- New Batteries March 2026

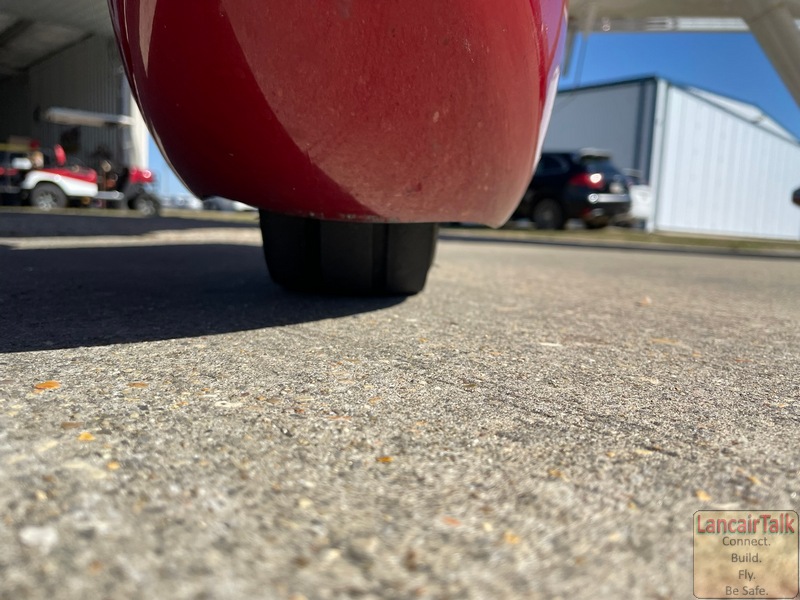

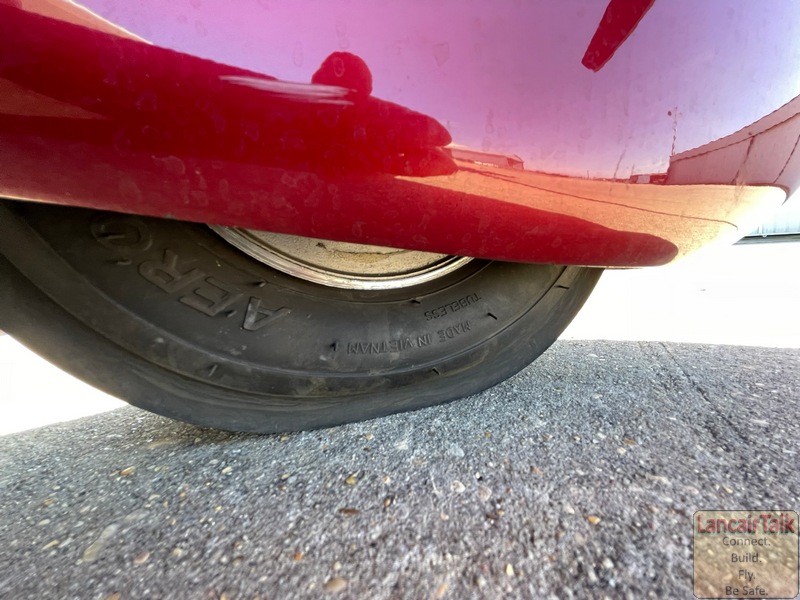

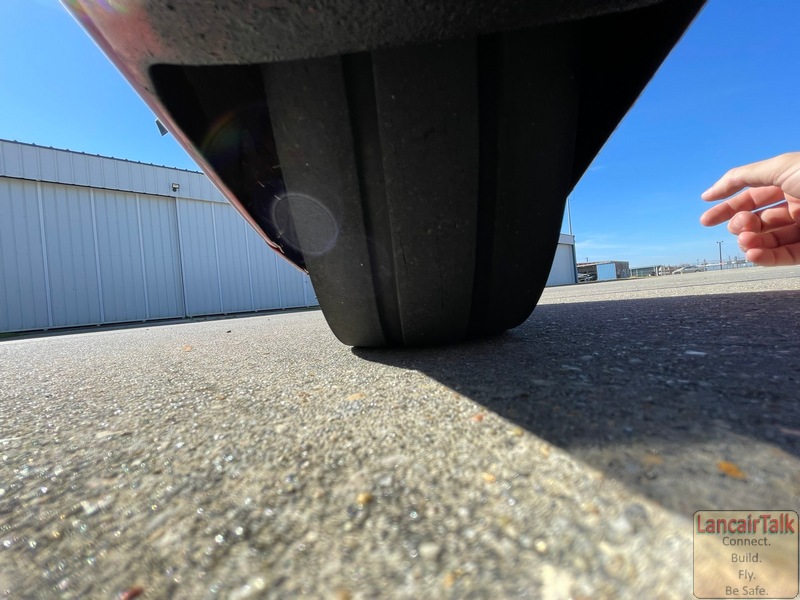

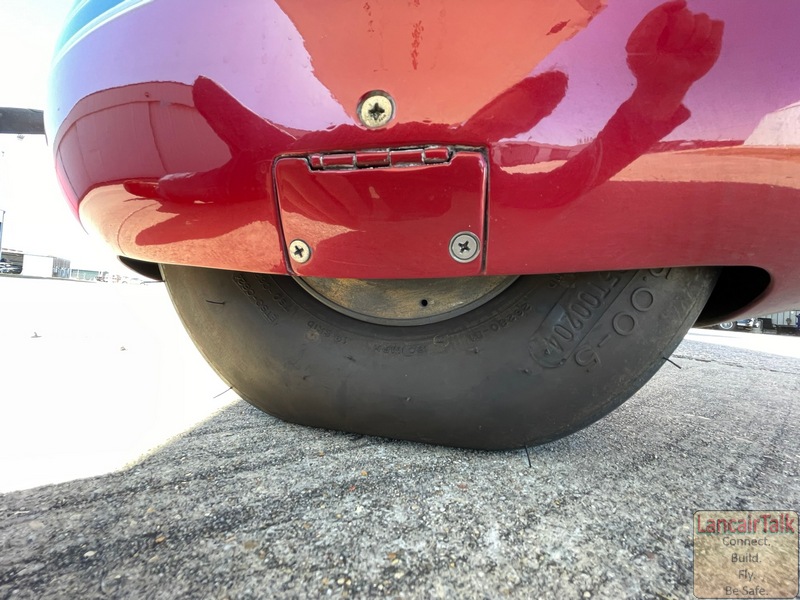

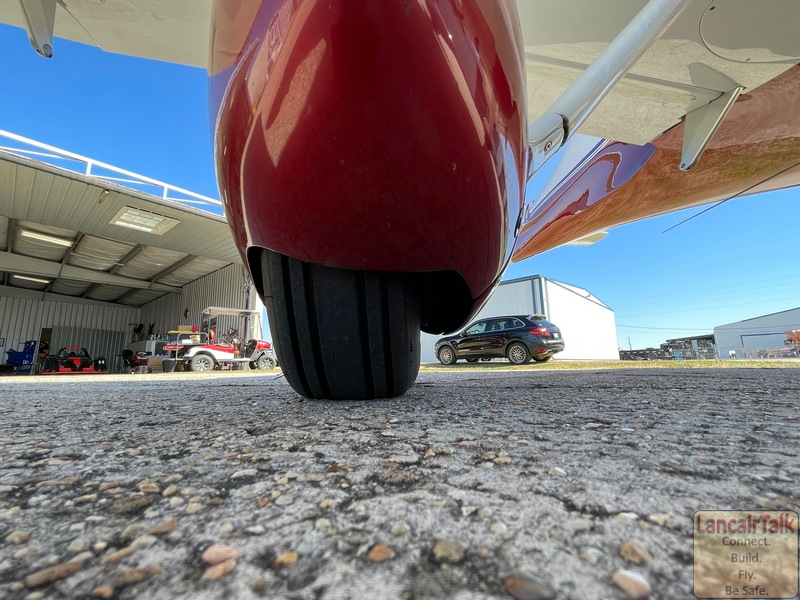

- New Main Tires March 2026
- ELT
- Fuel capacity 60g
- Typical Burn 15-16gph ROP
- TAS 180-185 KTAS (typical)
- V-Speeds: Vso = 58 kts, Vx = 95 kts, Vy = 125 kts
- K&N large area oiled air filter (Cleanable)

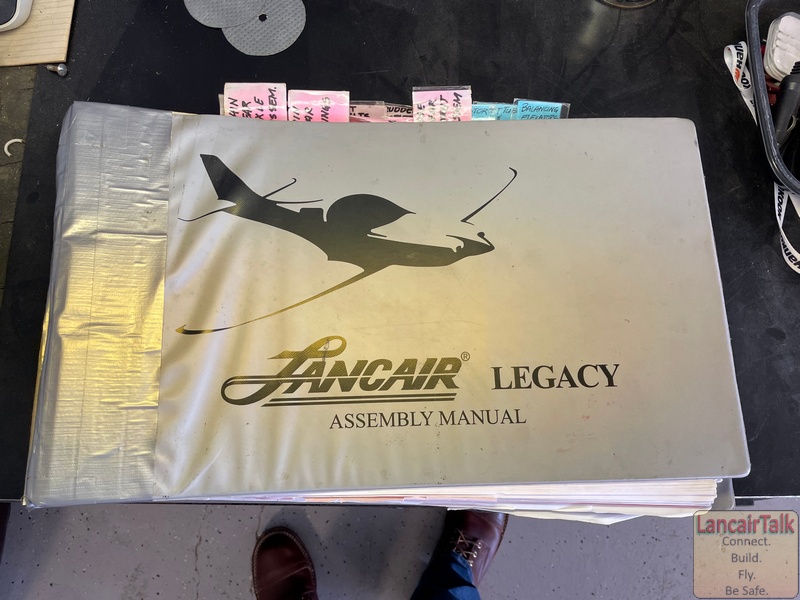

- Complete Build manuals and pictures of each step of build
- Full Maintenance logs

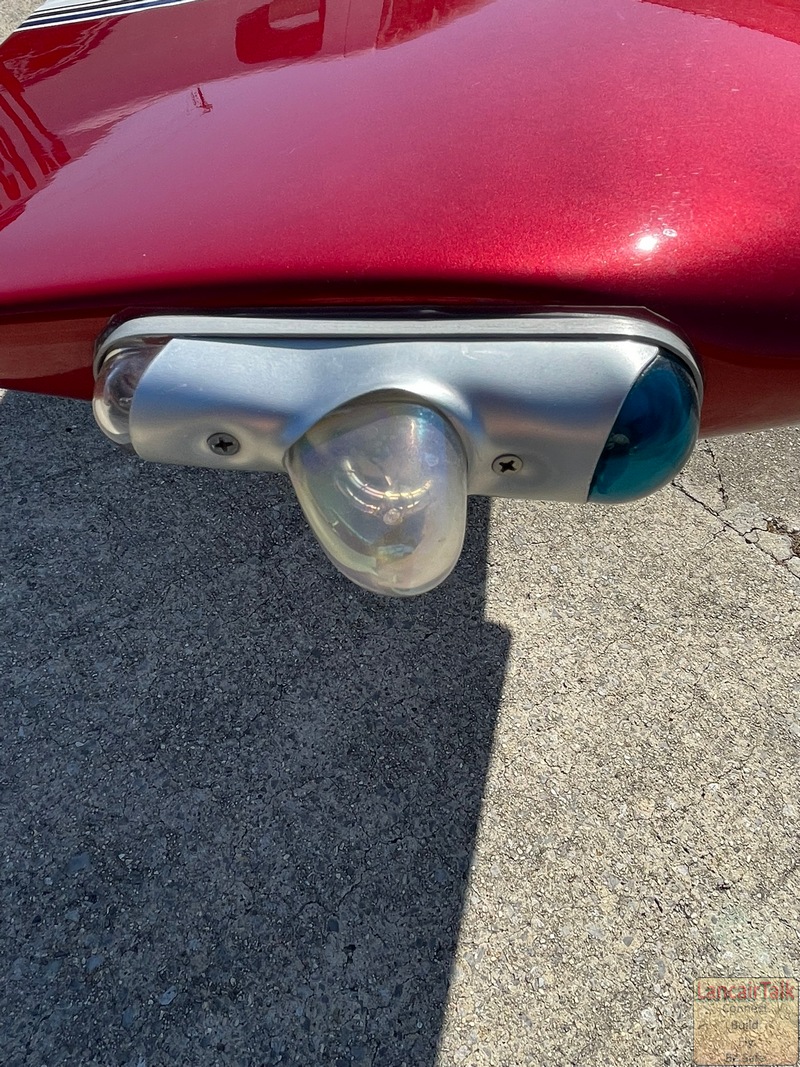

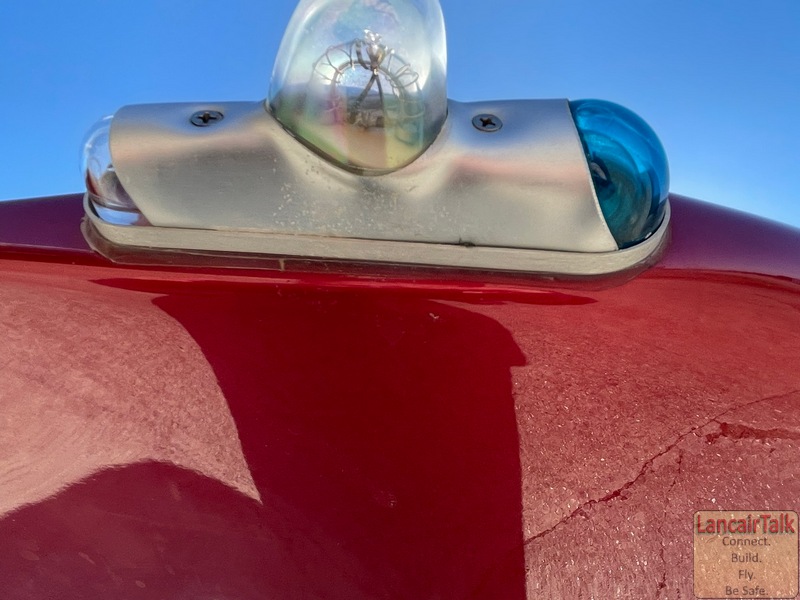

- Strobe and position lights
- Sky-Tec lightweight Starter
- Plane Power Alternator AL24-EE70/B
- Plane Power Voltage Regulator

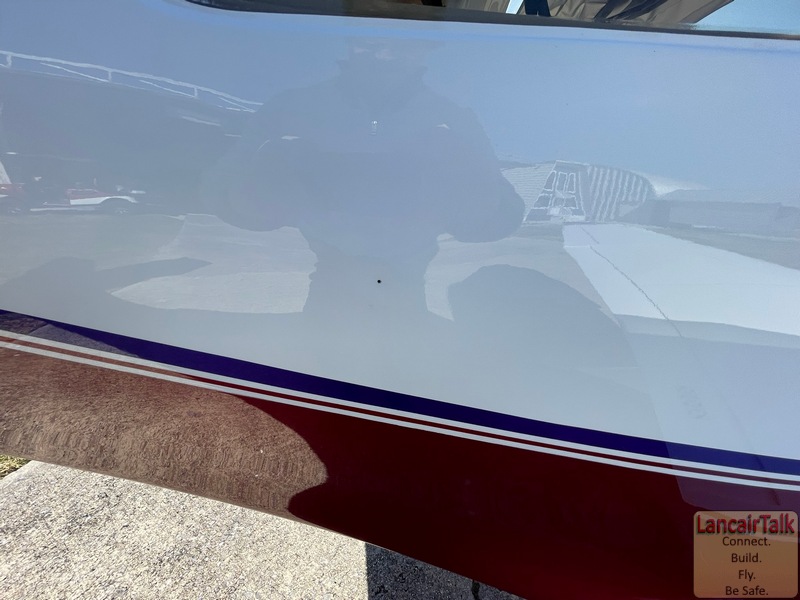

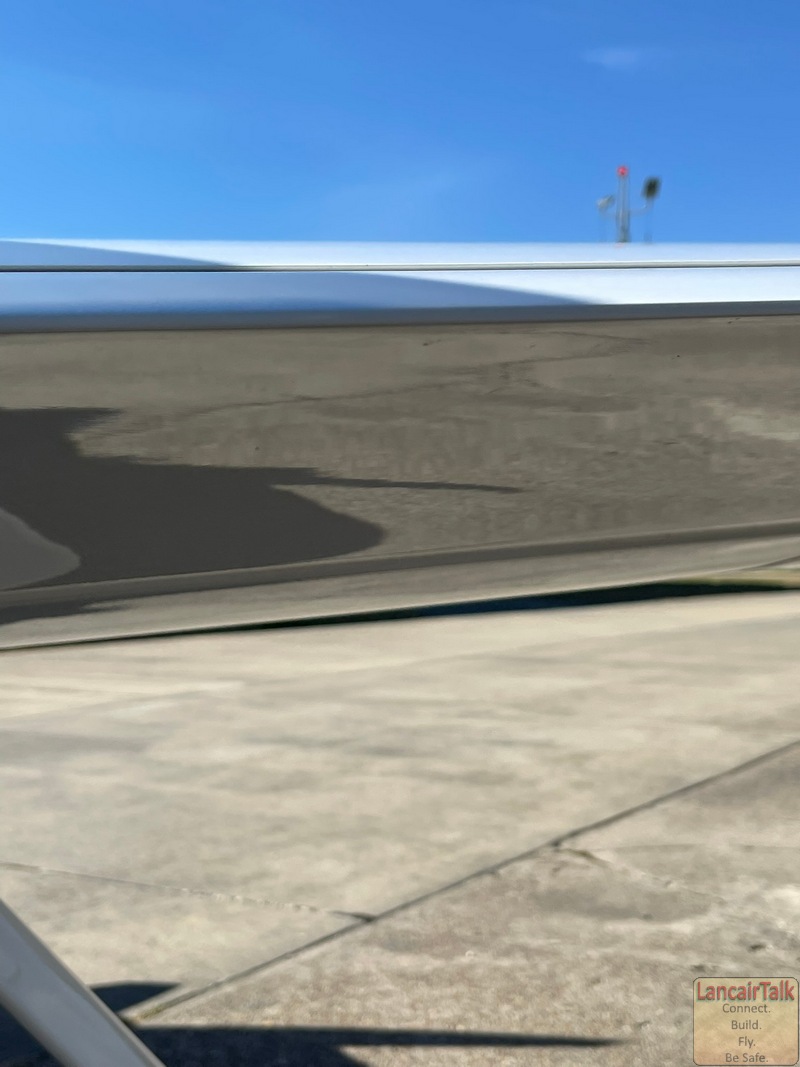

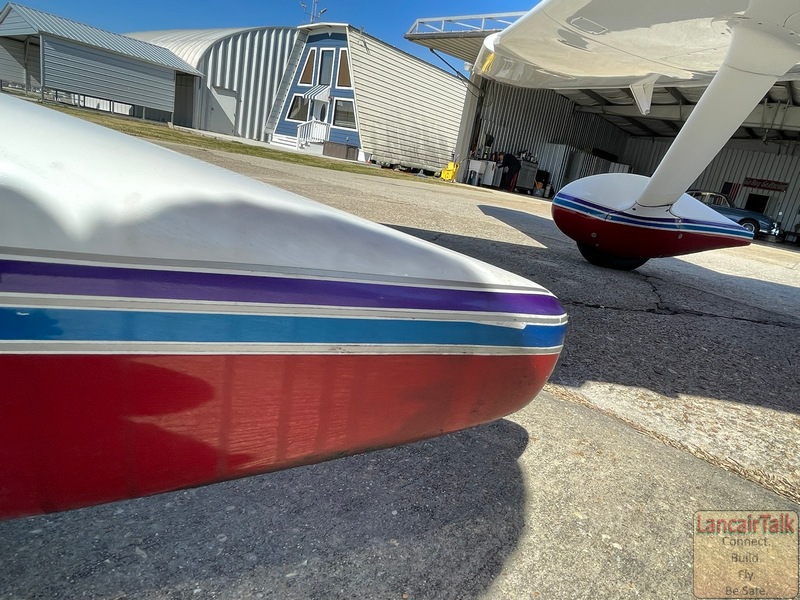

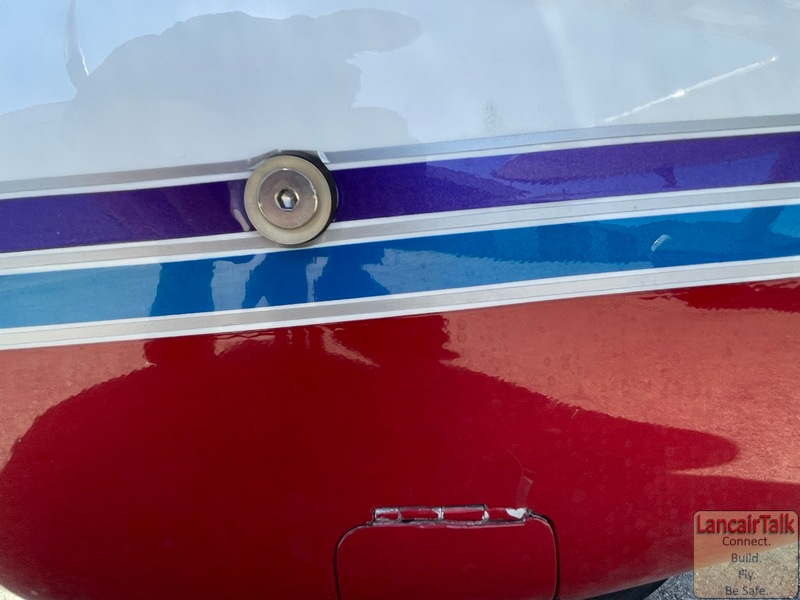

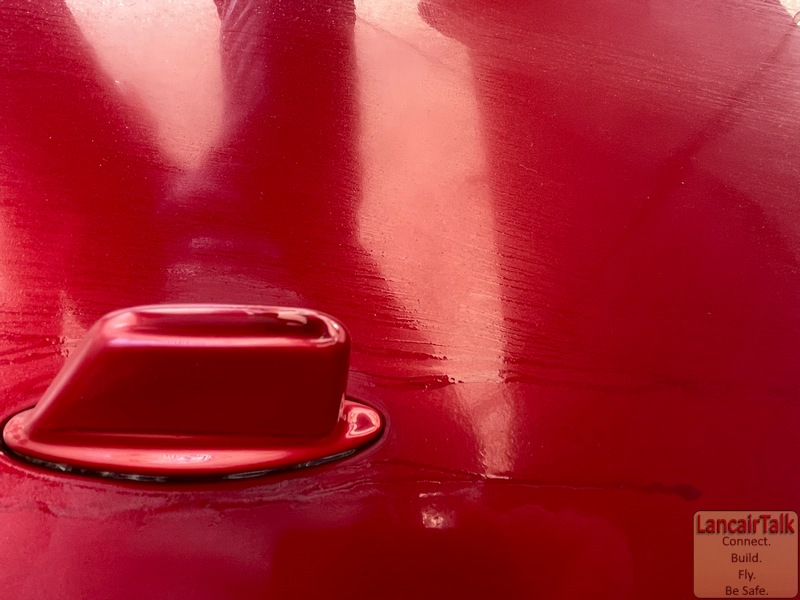

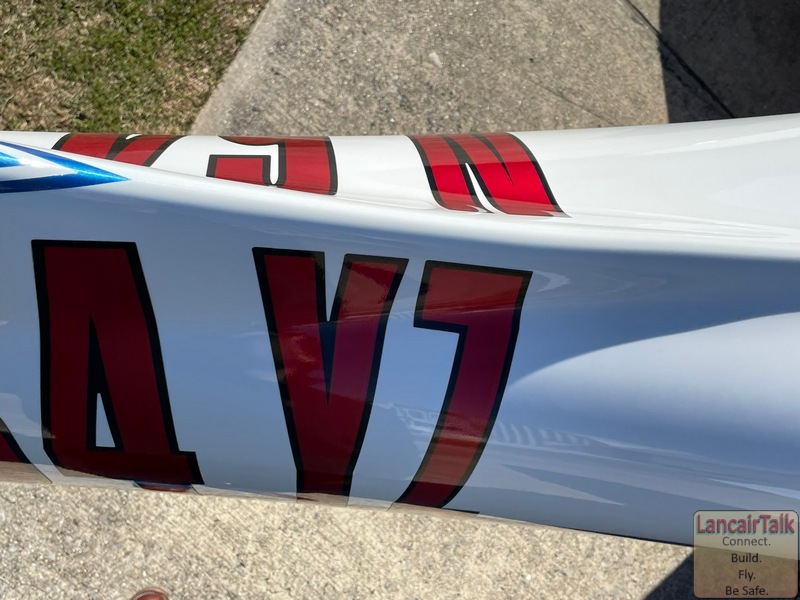

- Stunning 3M paint and clear coat

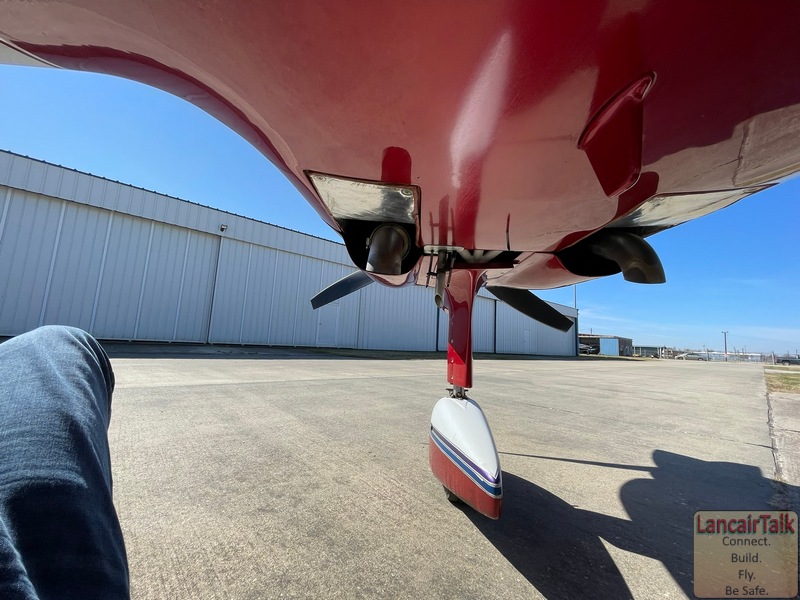

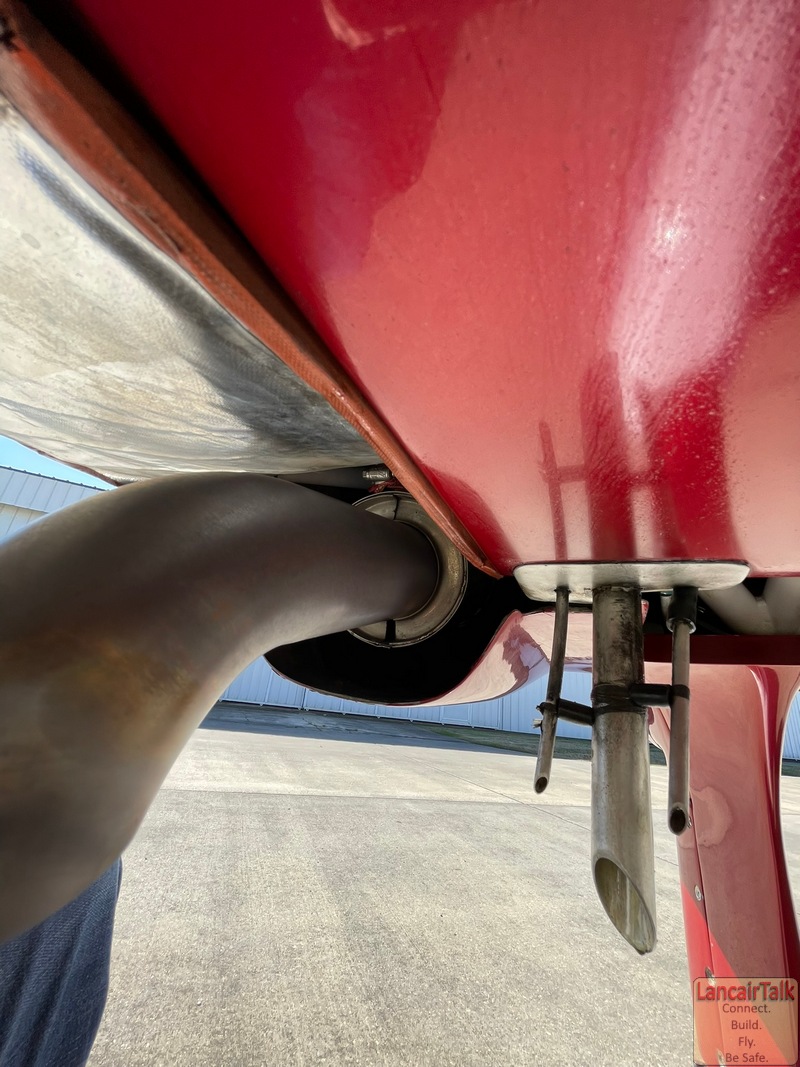

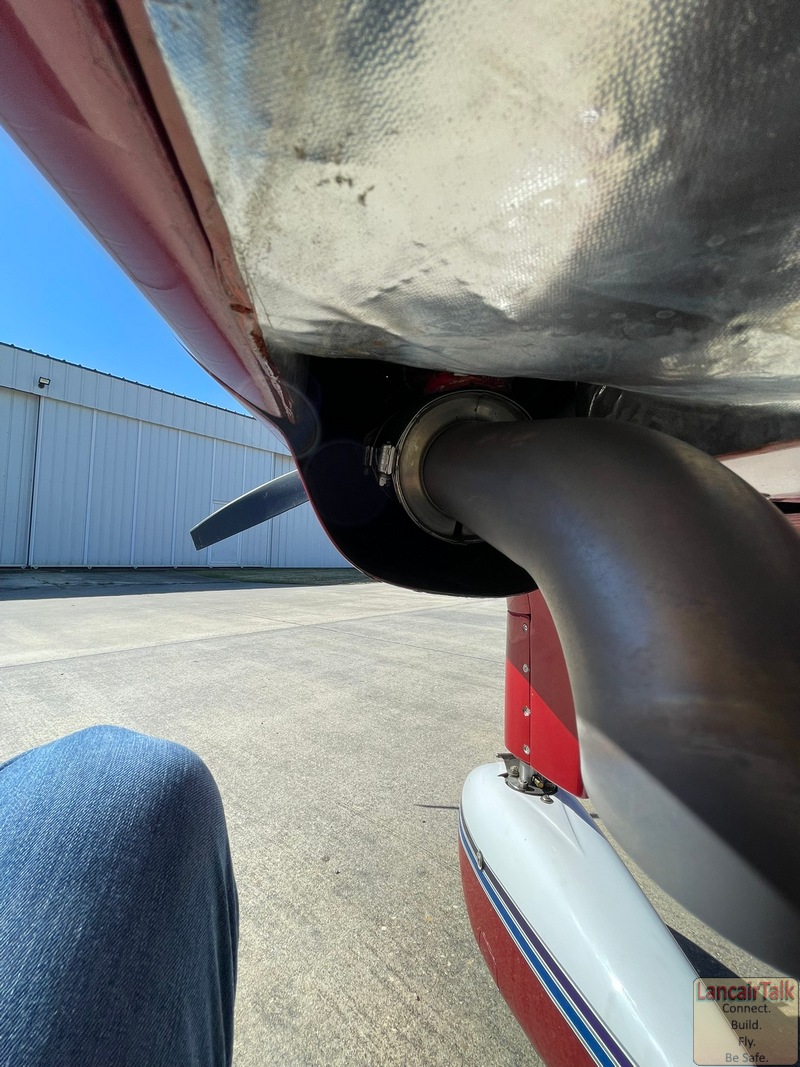

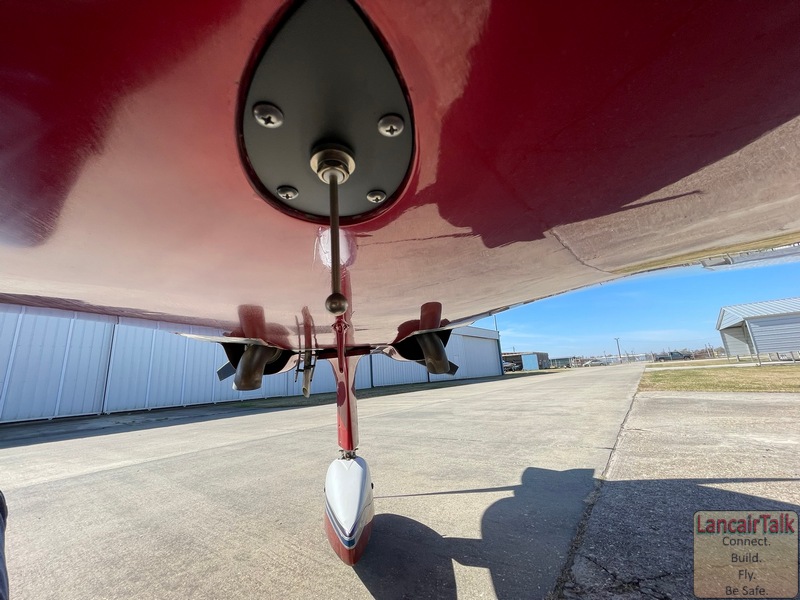

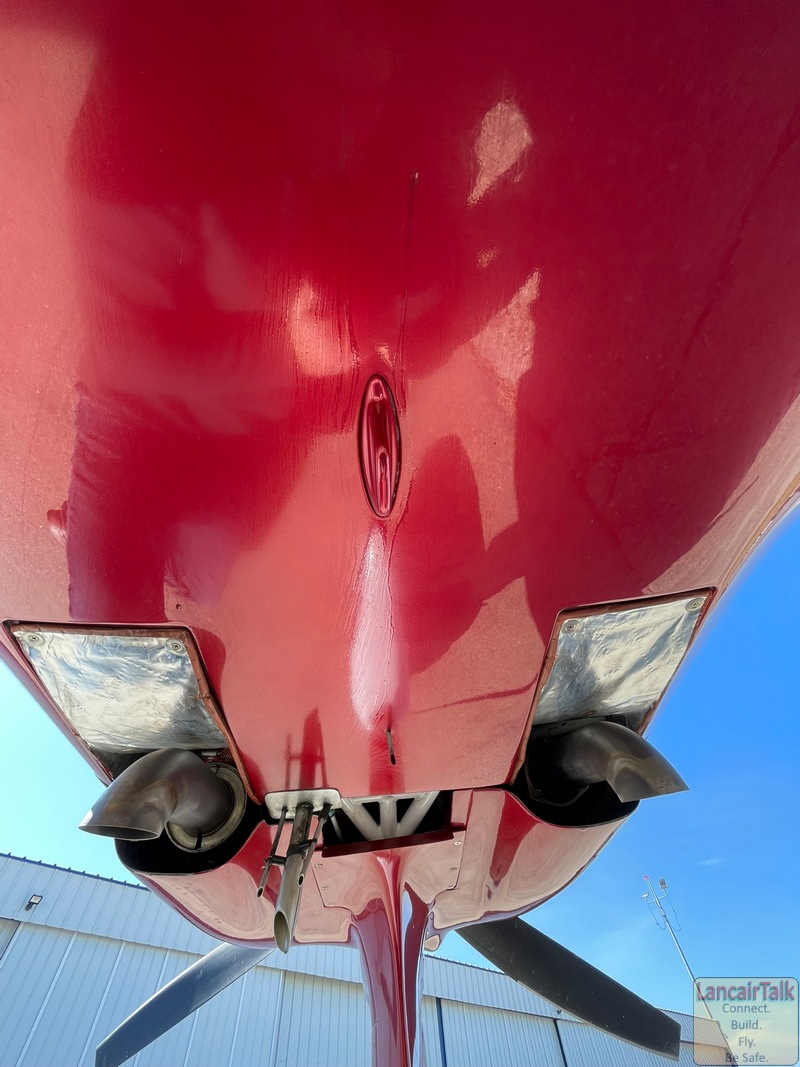

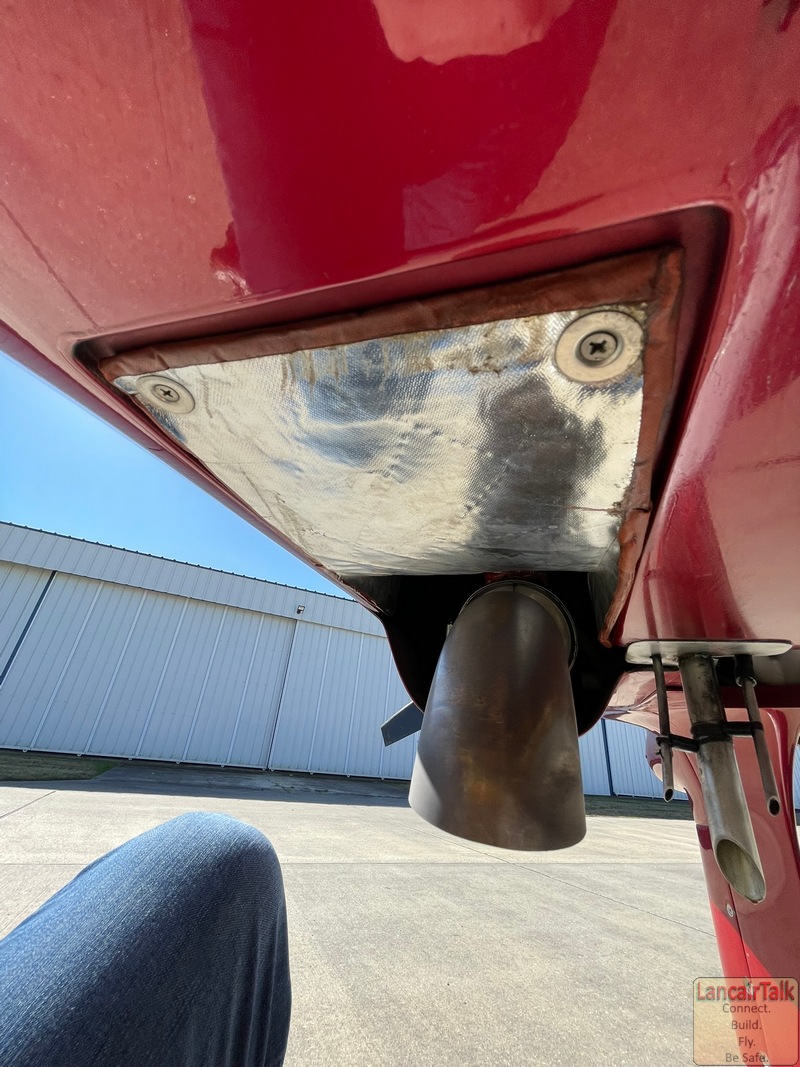

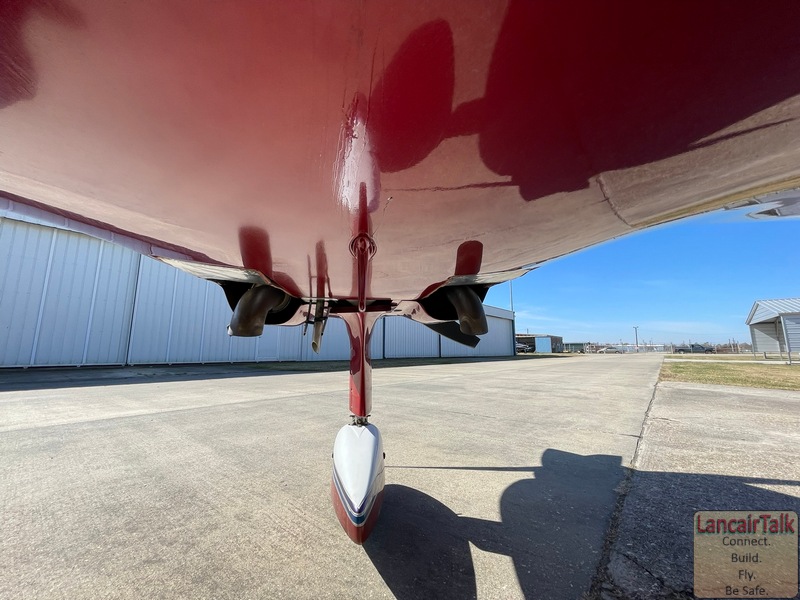

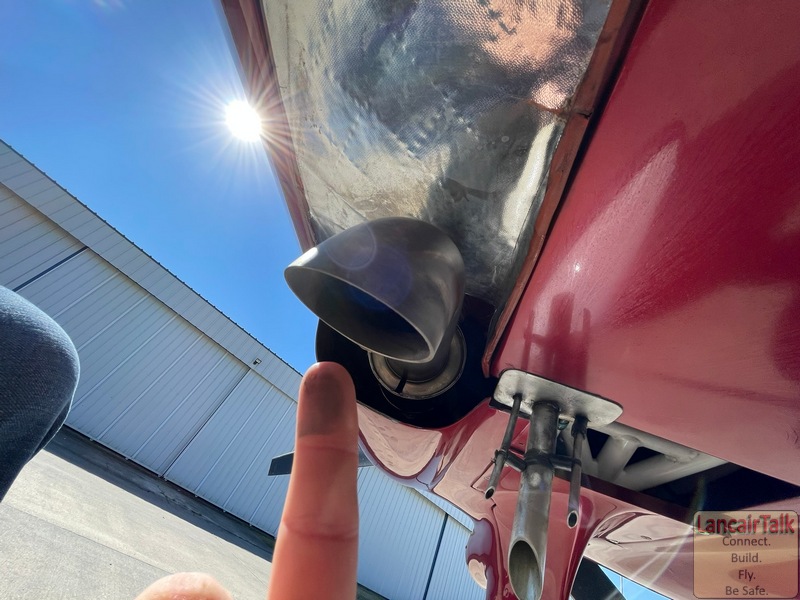

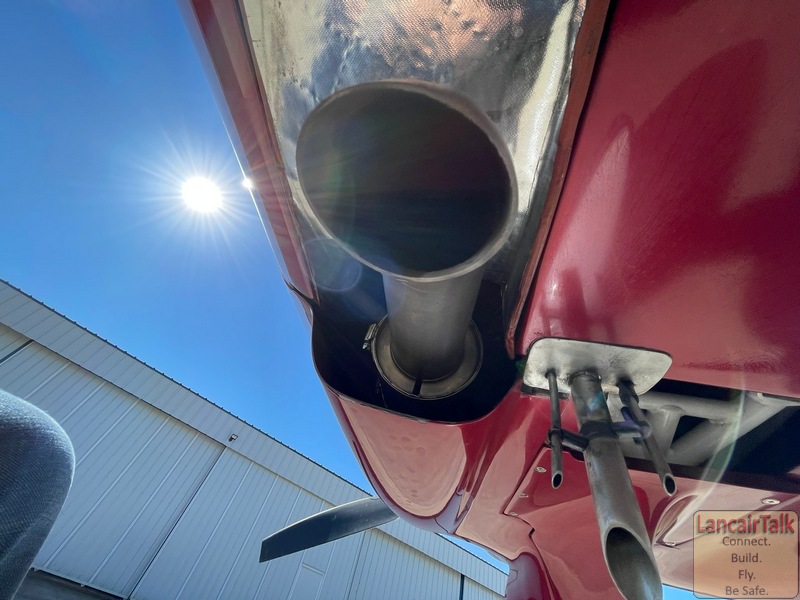

- Custom Stainless Steel exhaust

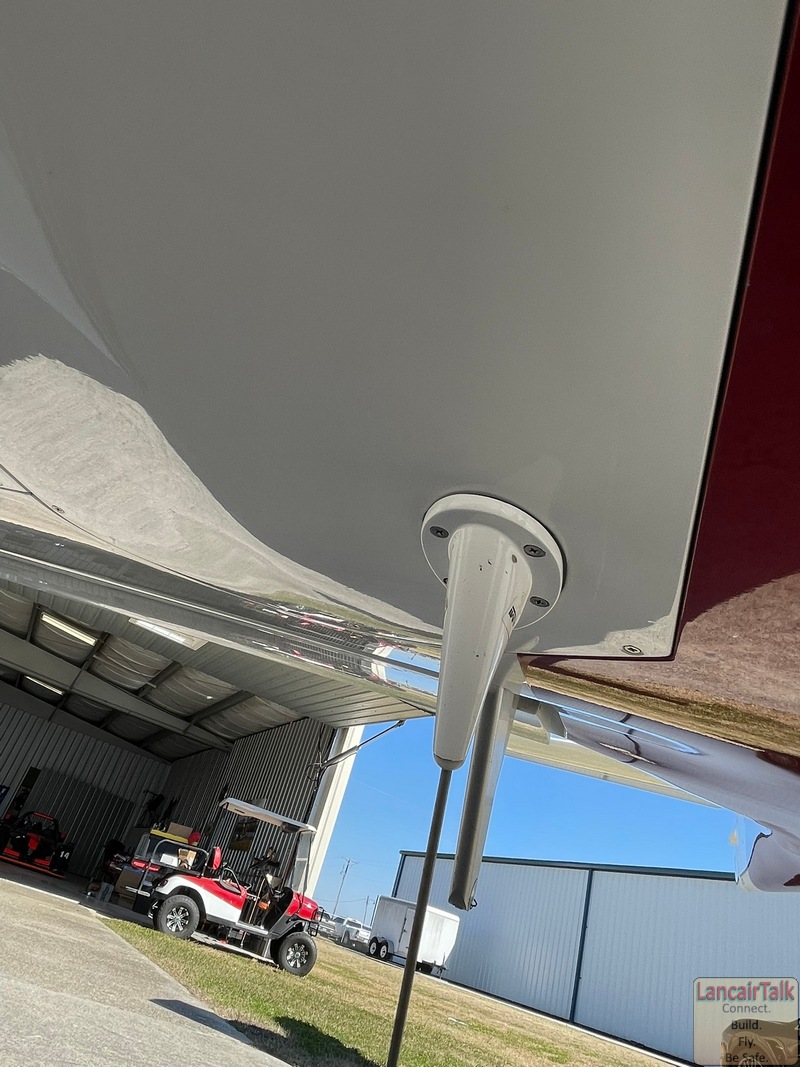

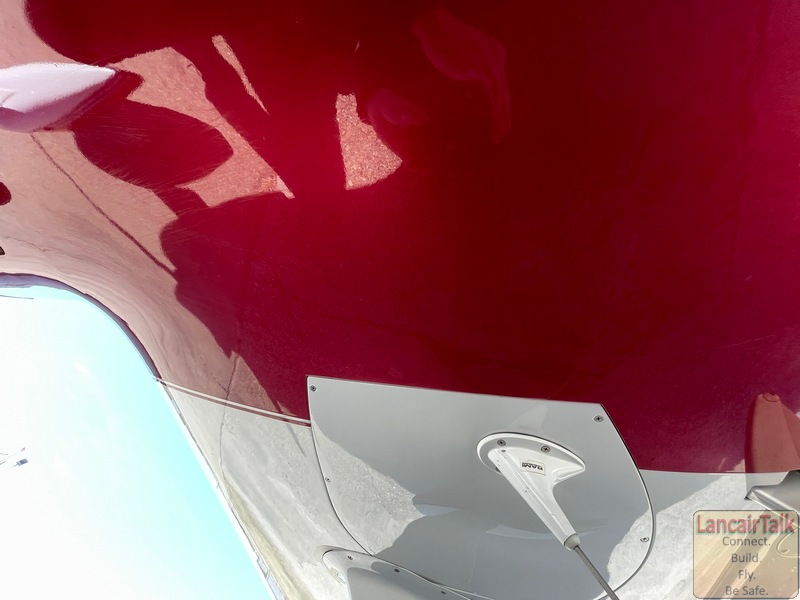

- Bob Archer Antenna

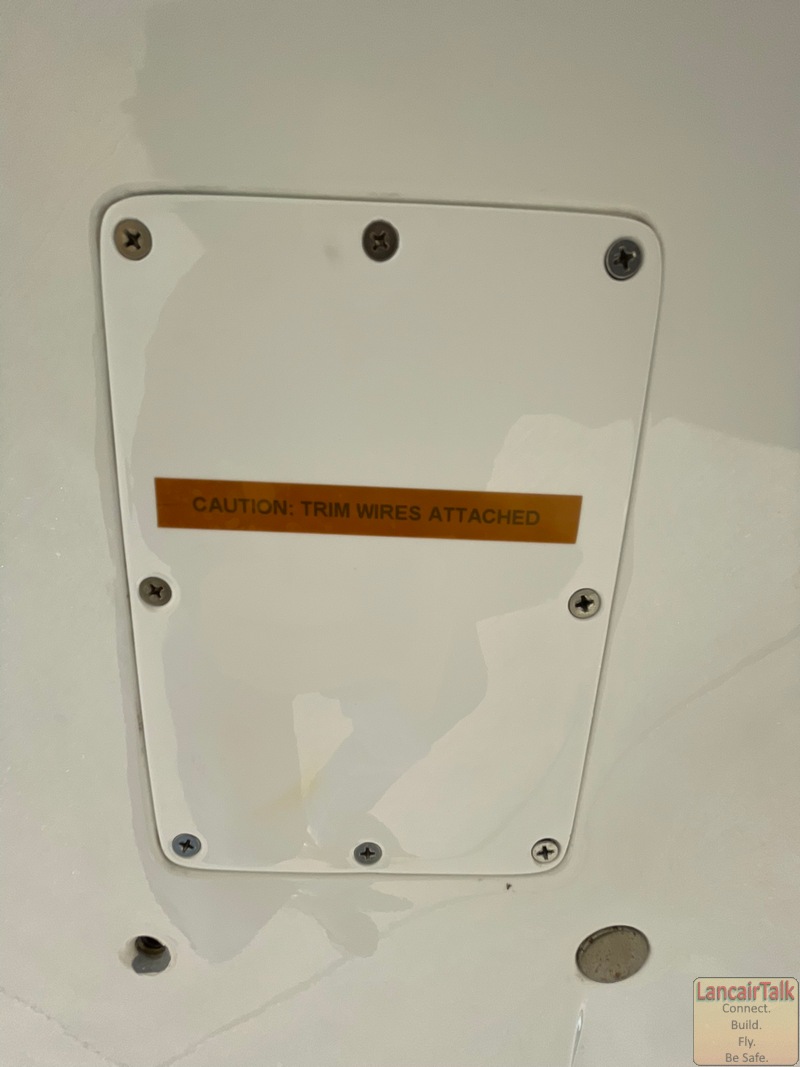

- Ray Allen trim servos

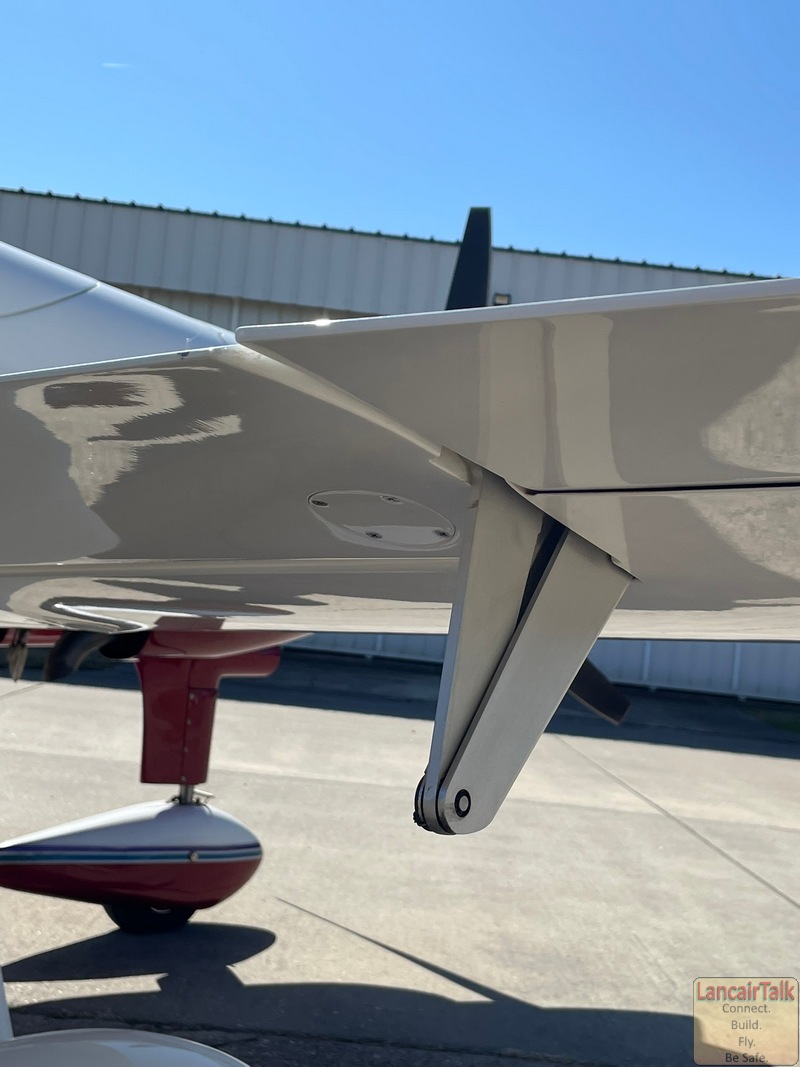

- Electric Flaps
- Joystick with Tosten Relay Deck
- Stainless Steel Cabin Heat Box

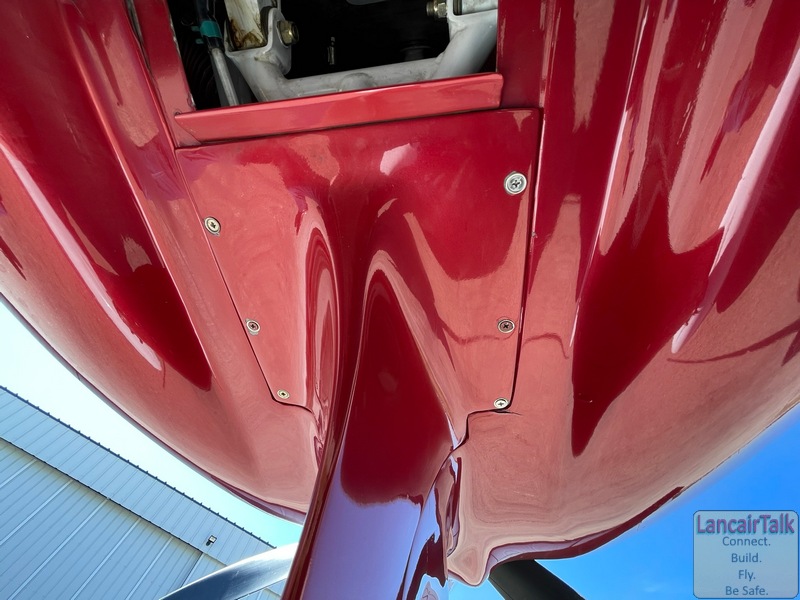

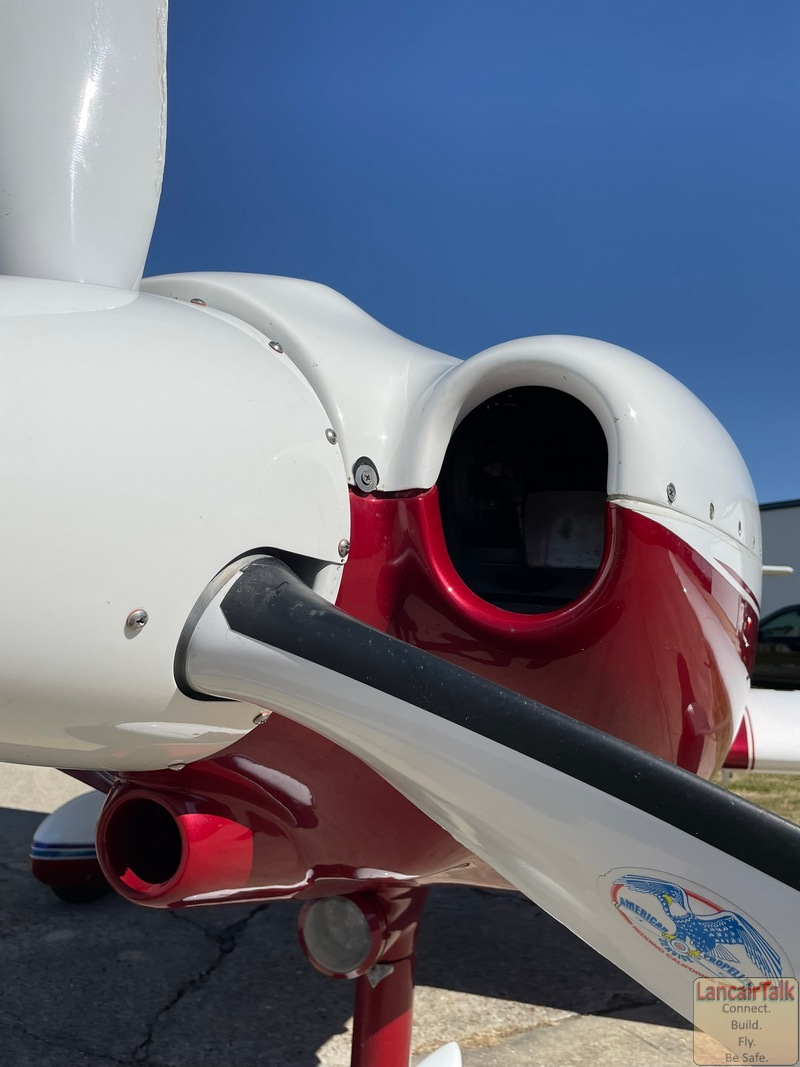

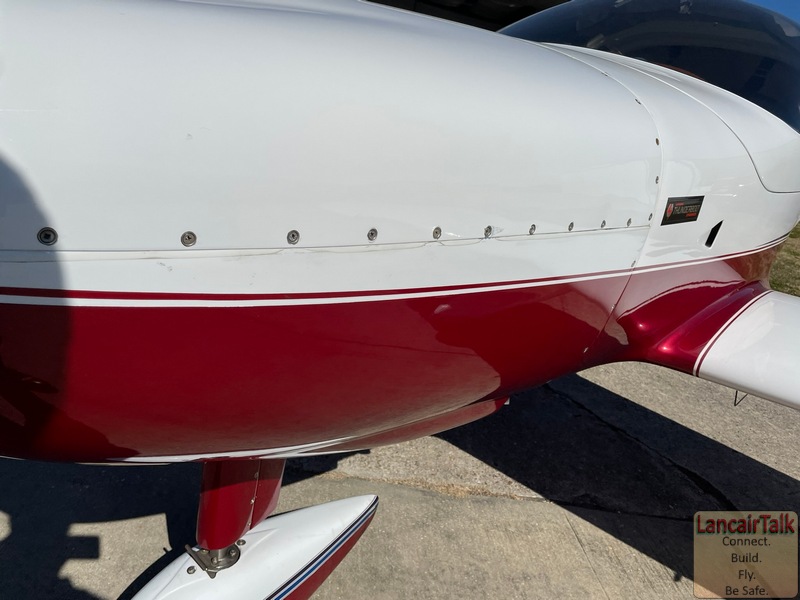

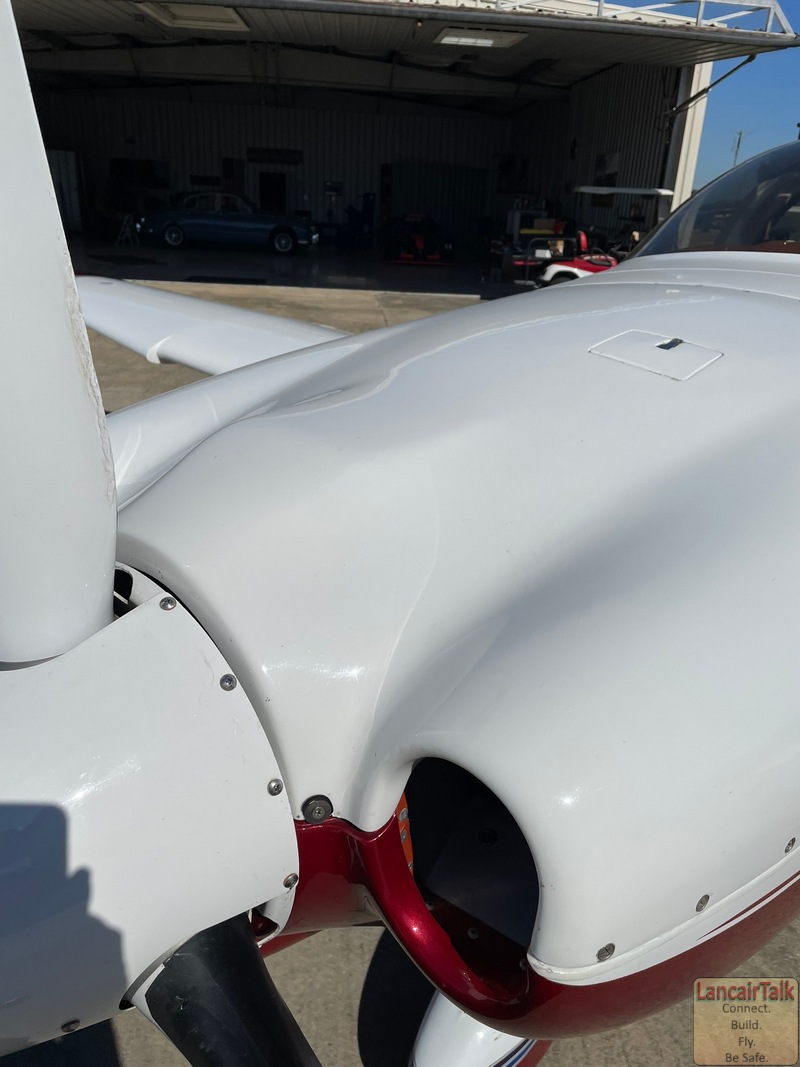

- Carbon cowl, lightweight and strong
- Super large oil cooler for hot climates 18-row Aero Classic
- EI fuel probes
- Gascolator with custom shield
- FT-60 Red Cube fuel flow sensor

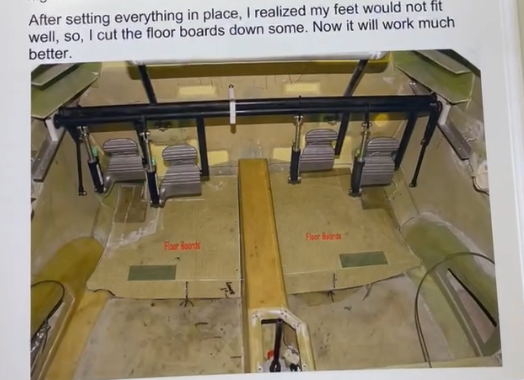

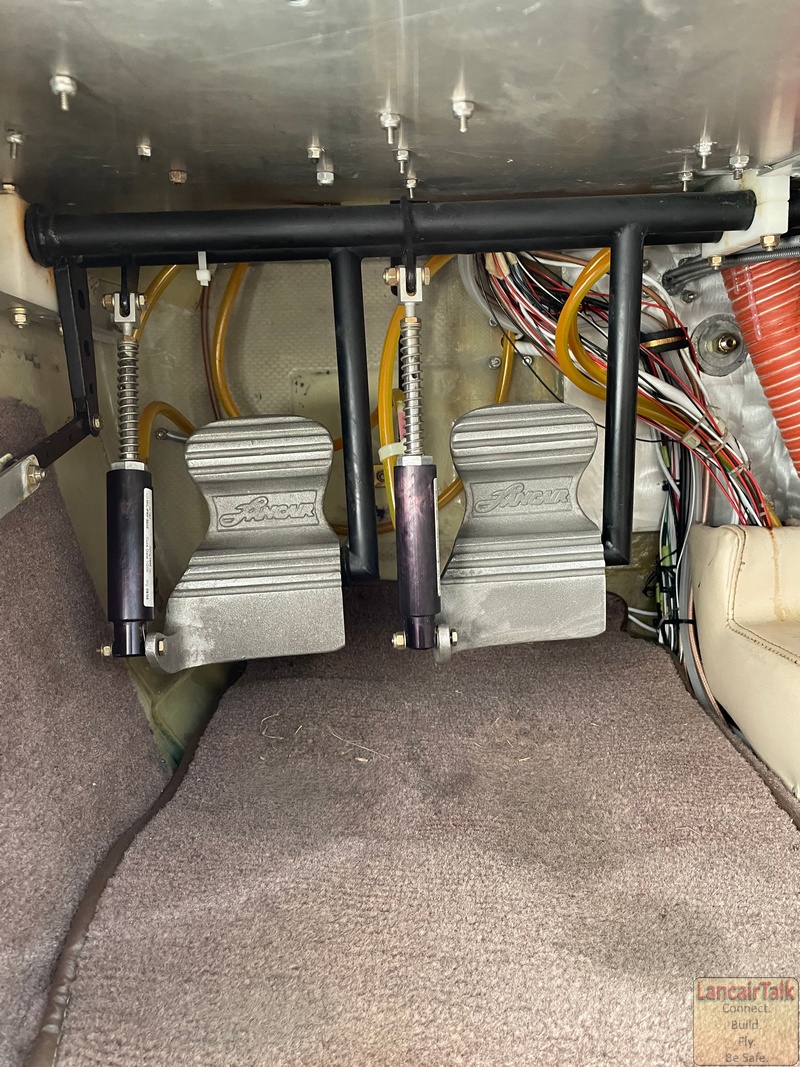

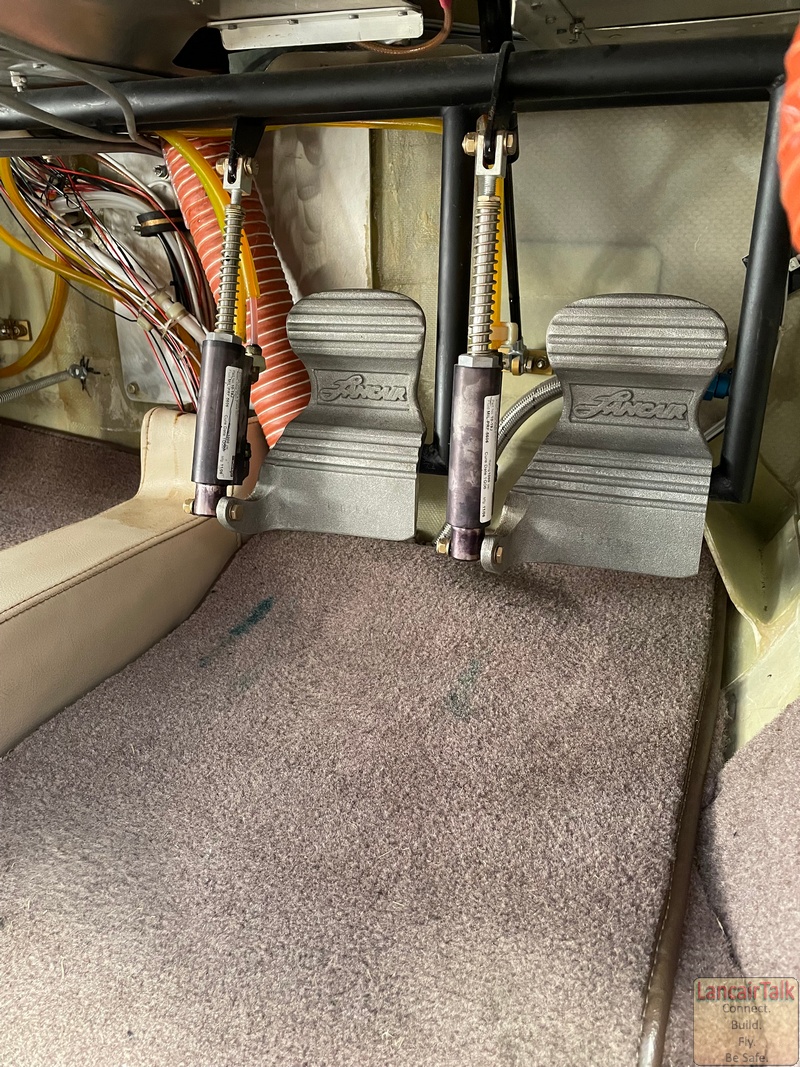

- Lowered floorboards for larger feet and rudder pedal clearance
- aluminum ground plane for comm antenna
- Control rods for pitch and roll axis
- Wing Cuff has demonstrated benign stall characteristics (straight ahead, light buffet, full aileron control)
Gallery (183 photos)
Specifications, equipment, and pricing are provided by seller sources and are subject to buyer verification.
